Capacity
-
Division
-
Features

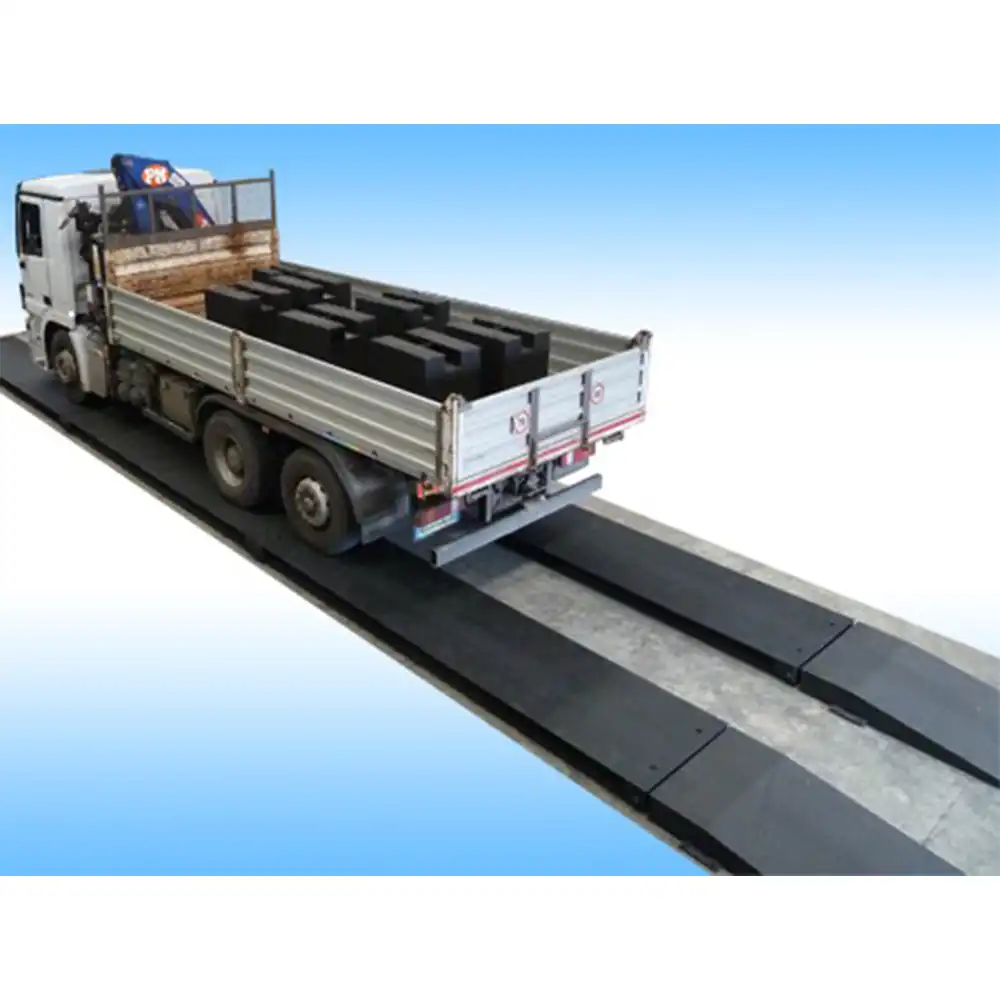

• Double lane weighbridges made of painted steel and consisting of modules (with embossed sheet metal top) 1m wide and 4.5m long.
• The metal structure has a height of approximately 200 mm with an extremely simple and quick coupling system between the modules.
• Four 2m long access ramps are supplied as standard.
• Weight detection by means of traction/compression load cells, approved up to 4000 divisions, with IP68 protection and complete with self-levelling 250 mm diameter feet on the floor with non-slip rubber.
• 15m shielded connection cable to the display.
• Analogue/digital junction box complete with board, connectors and with IP68 protection.
• The standard version includes the Iscale model visor with model TM295 tag printer.
• Special sizes and capacities by quotation
Data Sheets
-
User Manuals
Please login to download
Models
| Description | Dimensions | Capacity | Division | Code |
|---|---|---|---|---|
| 2 panels 8 cells | 4.5 × 1 × 0.2 | 15.000 - 30.000 Kg | 5/10 Kg | PDC 030T-1X4,5 |
| 4 panels 12 cells | 9 × 1 × 0.2 | 15.000 - 30.000 Kg | 10/20 Kg | PDC 030T-1X9 |
| 6 panels 16 cells | 13.5 × 1 × 0.2 | 30.000 - 60.000 Kg | 10/20 Kg | PDC 030T-1X13,5 |
| 8 panels 20 cells | 18 × 1 × 0.2 | 30.000 - 60.000 Kg | 10/20 Kg | PDC 030T-1X18 |
