Capacity
30.000 - 60.000 Kg
Division
10/20 Kg
Features

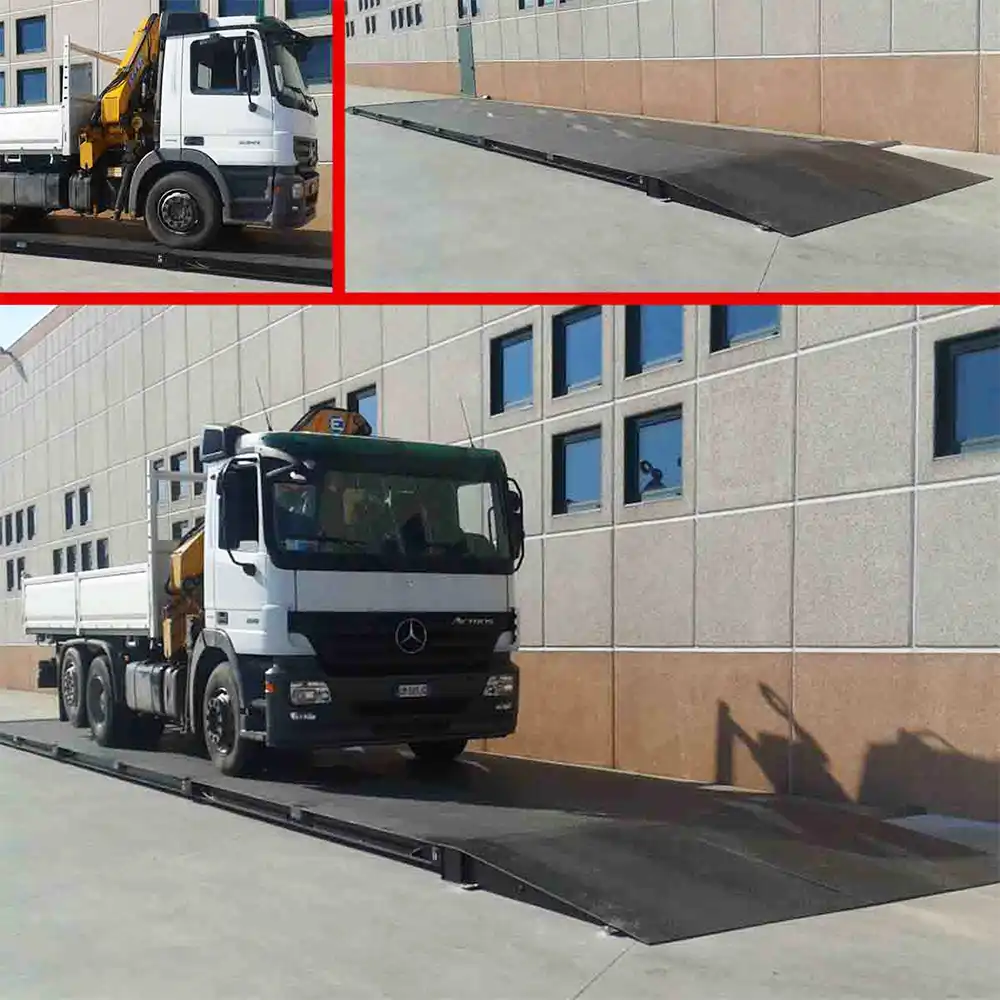

• Painted steel double lane weighbridges consisting of modules (with a embossed sheet metal top) 1.5m wide and 4.5m long.
• The metal structure has a height of approximately 200 mm with an extremely simple and quick coupling system between the modules.
• Four 2m long access ramps are supplied as standard.
• Weight detection by means of traction/compression load cells, approved up to 4000 divisions, with IP68 protection and complete with self-levelling 250 mm diameter feet on the floor with non-slip rubber.
• 15m shielded connection cable to the display.
• Analogue/digital junction box complete with board, connectors and with IP68 protection.
• The standard version includes the Iscale model visor with model TM295 tag printer.
• Special sizes and capacities by quotation
Data Sheets
User Manuals
Please login to download
Models
| Description | Dimensions | Code |
|---|---|---|
| {«it-IT»:»2 pannelli 8 celle «,»en-GB»:»2 panels 8 cells»} | 4.5 × 1.5 × 0.2 | PDC 030T-1,5X4,5 |
| {«it-IT»:»4 pannelli 12 celle «,»en-GB»:»4 panels 12 cells «} | 9 × 1.5 × 0.2 | PDC 030T-1,5X9 |
| {«it-IT»:»6 pannelli 16 celle «,»en-GB»:»6 panels 16 cells «} | 13.5 × 1.5 × 0.2 | PDC 030T-1,5X13,5 |
| {«it-IT»:»8 pannelli 20 celle «,»en-GB»:»8 panels 20 cells «} | 18 × 1.5 × 0.2 | PDC 030T-1,5X18 |
