Twist lock weighingSystem

Weighing solution suitable for easily obtaining the Verified Gross Weight (VGM) of containers in accordance with SOLAS regulations.

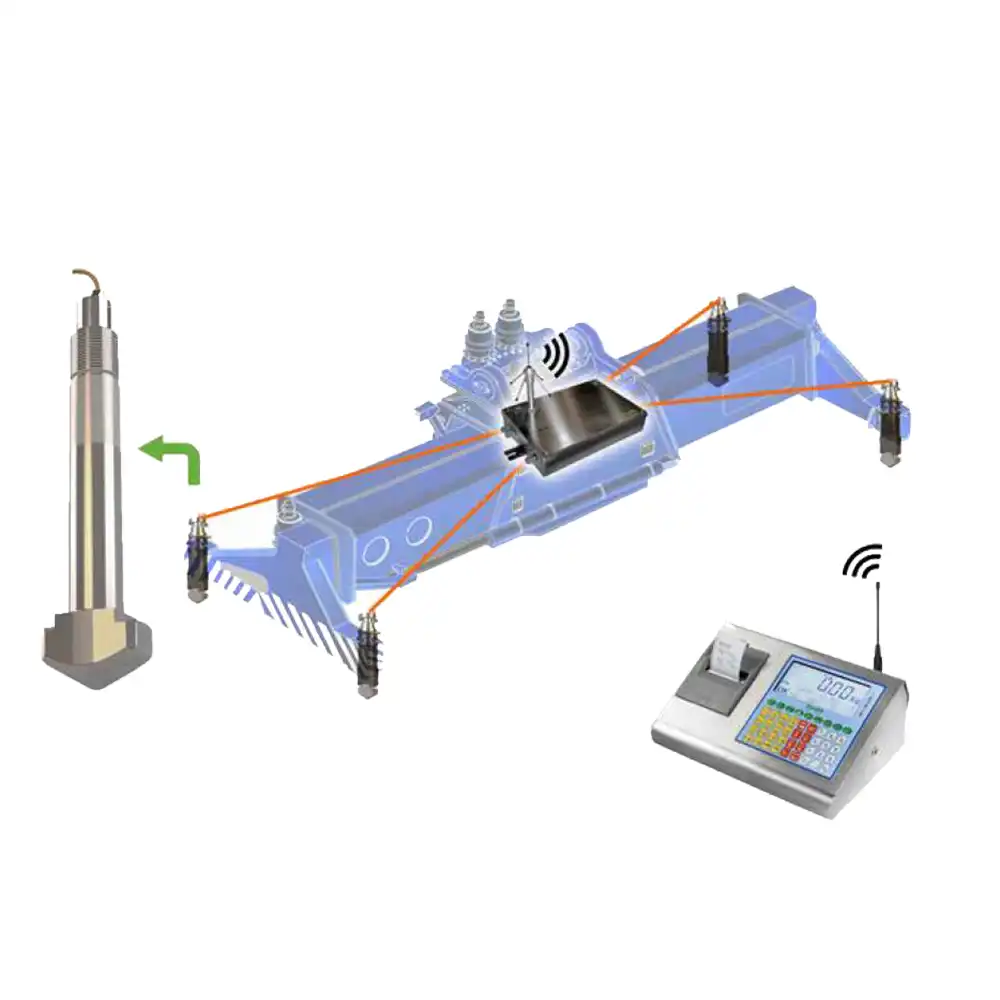

The Twist Lock System with load cell is Eurobil’s complete solution for the simplest, most accurate and fastest way to obtain the gross weight of containers. In addition to including the Twistlock load cells, it comes with the Iscale Professional weight indicator (with built-in scale), junction kit, TRF module and inclinometer. The Digital Traction Load Cell is designed to replace existing mechanical Twistlocks with mechanically compatible load cell Twistlocks to easily obtain container weights. Possibility of connecting 4 or 8 Twistlock load cells. Possibility of customising the kit for different installation requirements.

Twistlock technical features:
• Minimum installation required, calibration not necessary, PLUG & WEIGHT
• Compliant with safety factor 6:1 defined by ISO requirements
• Communication Interface: MODBUS RTU (RS485) (Twistlock)

Technical Specifications Weight Indicator (Iscale Professional):
• Backlit LCD display
• Serial interface: RS 232
• 32-key keyboard
• Built-in thermal printer

Technical characteristics Protection Box:
• Protects against saltiness and weathering
• Stainless steel with seals
• Planned accommodations for: junction box, tiltmeter, RF module, RF antenna
• Capacity: Up to 3000 OIML R-60 divisions, 5 to 25 t digital cell
