Capacity
-
Division
-
Features

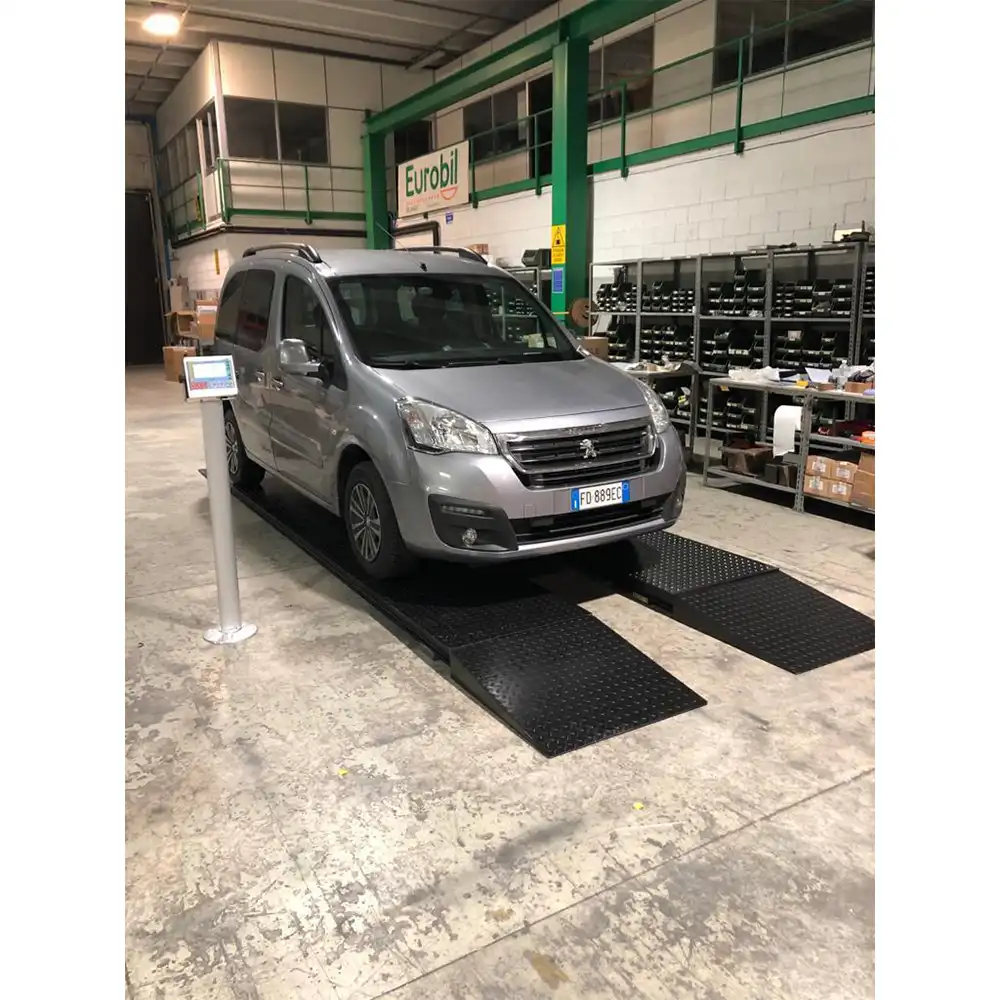

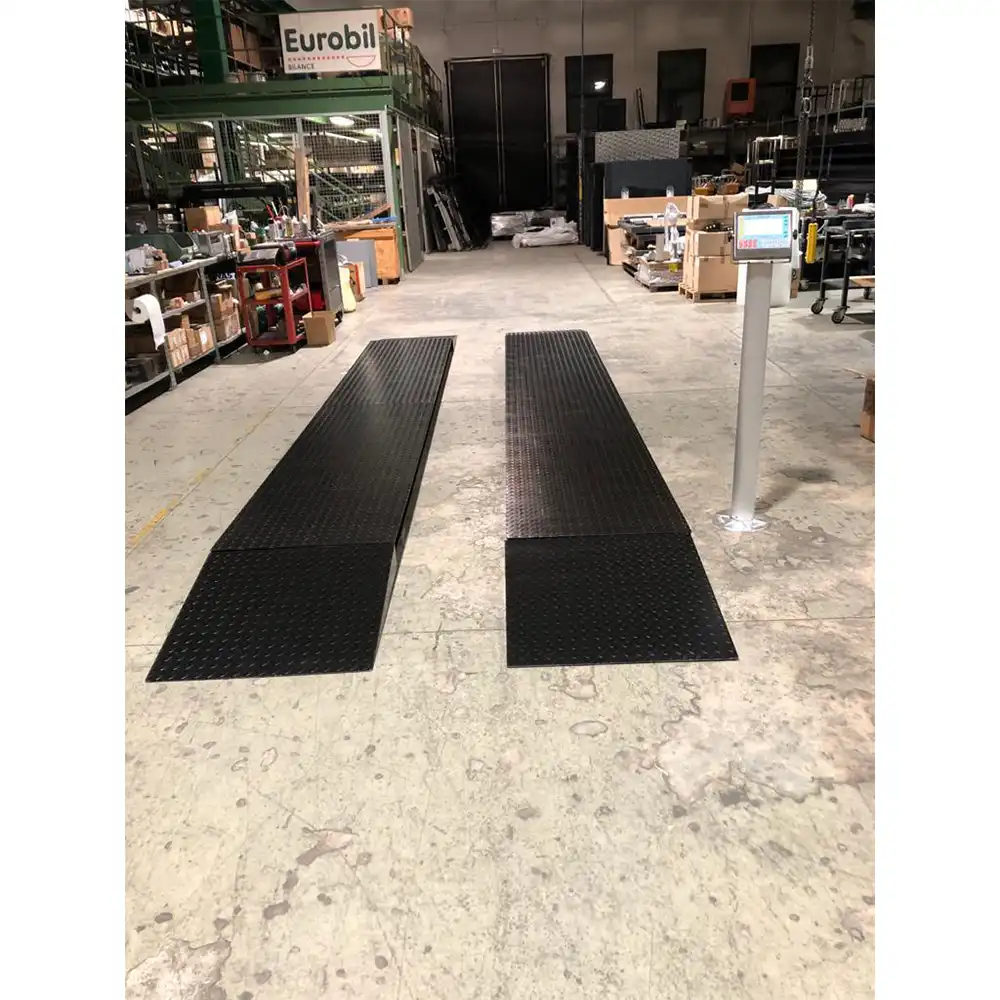

• Painted steel weighing platforms with embossed sheet metal for above-floor installation, suitable for weighing vehicles and small vans (standard equipment includes 2 platforms and 4 access ramps).
• Dimensions of each platform: length 4.5m - width 0.70m.
• Dimensions of each ramp: length 1m - width 0.70m.
• Weight measurement through 12 stainless steel shear load cells, approved up to 4000 divisions and with IP69 protection.
• Shielded display connection cable of 5m.
• Self-centring articulated feet for each load cell and spirit level.
• Junction box complete with board, connectors and with IP68 protection.
• The standard version includes the display Fly Plus model and the thermal printer fast 80 model
Accessories not found
Data Sheets
User Manuals
Please login to download
Models
Description | Capacity | Division | Code |
---|---|---|---|
Mosules. 2 panels | 6000 Kg | 1.2 Kg | PROTTC6TO |
Mosules. 12 cells | 8000 Kg | 2 Kg | PROTTC8TO |
10000 Kg | 5 Kg | PROTTC10T |
