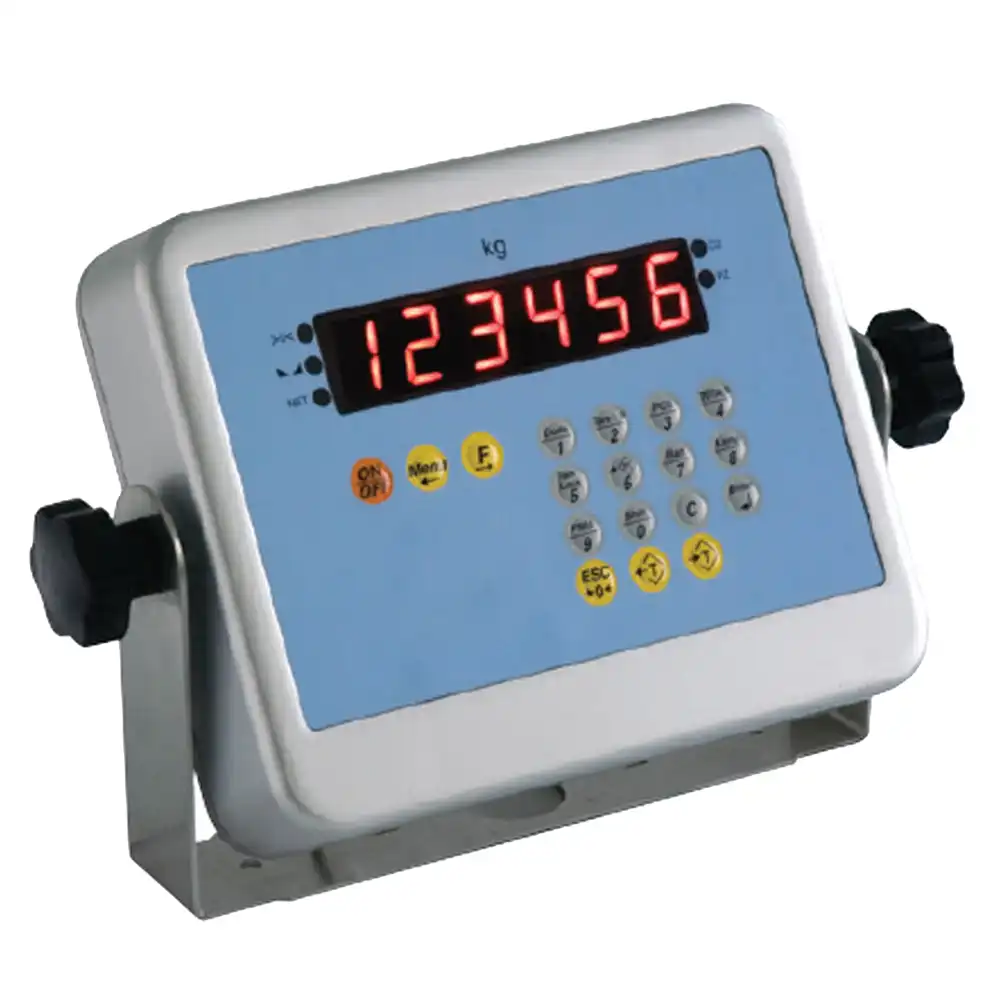

FLY/1 Display

Functional characteristics:
• Automatic tare and manual tare device
• Case: ABS plastic with stainless steel bracket
• Tare locking/unlocking device
• Battery charge level indicator device
• Counting functions
• 9 storable tares
• 99 codes with assignable PMU and management of totalisations
• Weighing printout with final totalisation, printing of totals per code
• Weighing storage and subsequent download to PC
• Energy autonomy approx. 10 hours
• Battery recharge time approx. 12 hours (recharge also when the instrument is switched off)
• Programmable auto switch-off device if the instrument is not used
• Connection to personal computers, printers, repeaters
Technical features:
• Instrument power supply: 6 V dc battery
• External power supply: 230 V ac 7 V dc
• Max. absorption: 8 W
• Operating temperature: -10°C to +40°C (max. humidity 85% non-condensing)
• Storage temperature: -10°C ÷ +50°C
• Protection: IP67 version available
• Display: 6 (max) digit red LEDs with 7 segments (h 20 mm)
• Indication leds: 4 (max) red leds 5 mm diameter
• Keypad: numeric with 17 keys
• Switching on/off: from keypad
• Battery control: battery charge status display, with automatic switch-off
• Overall dimensions: 210 x 170 x 50 mm
• Load cell power supply: 5 V dc / 90 mA (max 6 load cells 350 Ω), short-circuit protected
• Input sensitivity: 0.5 mv/div Instrument power supply: 6 V dc battery
• External power supply: 230 V ac 7 V dc
• Max. absorption: 8 W
• Operating temperature: -10°C to +40°C (max. humidity 85% non-condensing)
• Storage temperature: -10°C ÷ +50°C
• Protection: IP67 version available
• Display: 6 (max) digit red LEDs with 7 segments(h 20 mm)
• Indication leds: 4 (max) red leds 5 mm diameter
• Keypad: numeric with 17 keys
• Switching on/off: from keypad
• Battery control: battery charge status display, with automatic switch-off
• Overall dimensions: 210 x 170 x 50 mm
• Load cell power supply: 5 V dc / 90 mA (max 6 load cells 350 Ω), short-circuit protected
• Input sensitivity: 0.5 mv/div
