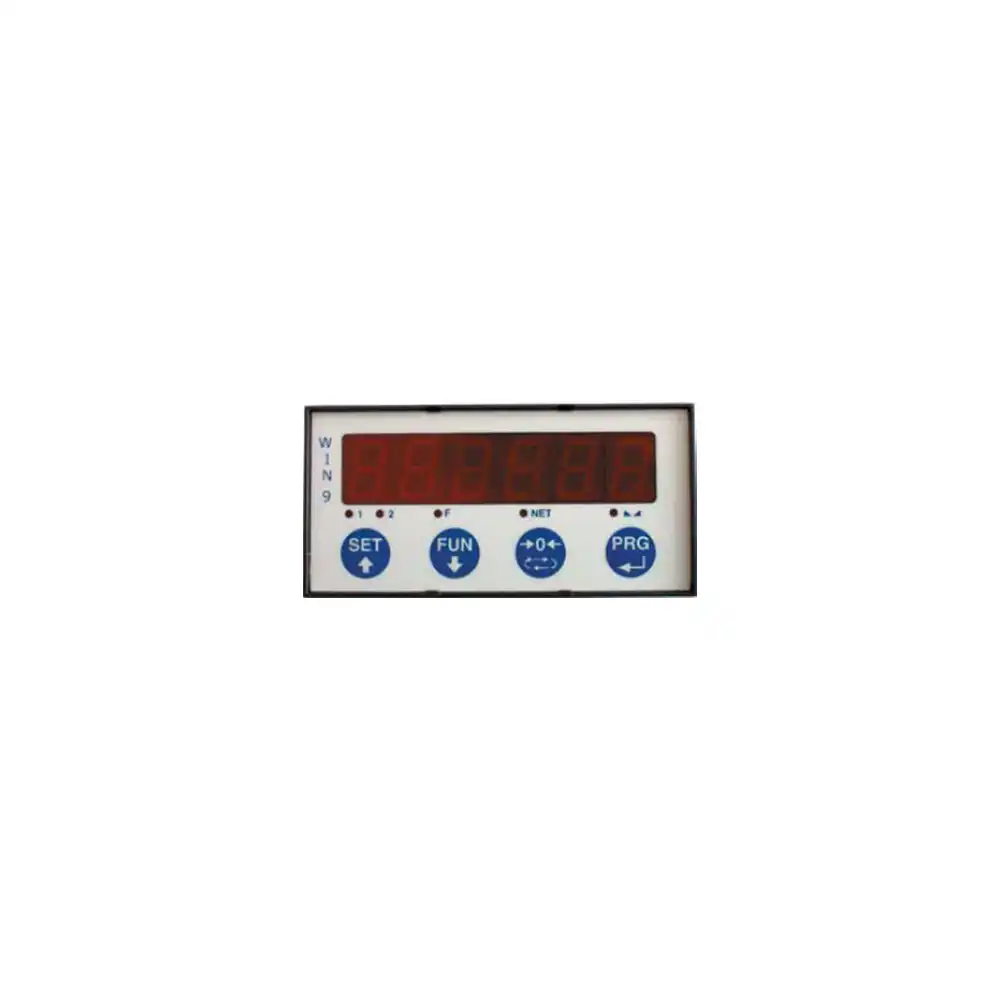

Weight indicator WIN 9

Technical features:
• Power supply 24 V DC ± 15%
• Max. power consumption 5 W
• Insulation Class II
• Installation category Cat. II
• Operating temperature -10°C +40°C (max. humidity 85% non-condensing)
• Storage temperature -20°C +50°C
• 6 digit red LED 7-segment numerical weight display (h 14 mm)
• Five 3 mm indicator LEDs
• Keyboard 4 mechanical keys
• Overall dimensions 96 mm x 48 mm x120 mm (lxhxp)
• Flush-mounted on panel (drilling template 91x44 mm)
• Housing material Noryl self-extinguishing (UL 94 V1)
• Front protection rating IP54
• Removable screw terminal connections pitch 5.08.
• Load cell power supply 5 V DC / 90mA (max. 6 cells of 350W in parallel) short-circuit protected.
• Input sensitivity 0.02 mV min.
• Linearity < 0.01% of full scale
• Temperature drift < 0.001% of full scale / C°
• 24-bit internal resolution
• Weight resolution displayed up to 60,000 divisions on the payload
• Measuring range -3.9 mV/V to +3.9 mV/V
• Acquisition frequency pes 6 Hz - 25 Hz
• Digital filter selectable 0.1 Hz - 25 Hz
• Decimal number weight 0 to 3 decimal places
• Zero and full scale calibration automatic (theoretical) or executable via keyboard.
• Logic outputs 2 opto-isolated (dry contact) max. 24V dc / 60 mA each.
• Logic inputs 2 opto-isolated 24 V DC PNP (external power supply)
• Serial port (No. 2) Rs232c / Rs422 / Rs485 half duplex.
- Maximum cable length 15m (Rs232c) and 1000m (Rs422 and Rs485)
- Serial protocols ASCII, Modbus
- Baud rate 2400, 9600, 19200, 38400, 115000 selectable
• Program code memory 128 Kbytes FLASH reproducible on board by RS232
• Data memory 4 Kbytes
• Optional Analogue Output Voltage: 0÷10 V / 0÷5 V
- Current: 0÷20 mA / 4÷20 mA
- 16 bits resolution
- Digital keyboard calibration
- Impedances Voltage: minimum 10KW Current: max 300W
- Linearity < 0.012 % of full scale
- Temperature drift < 0.001% of full scale / °C
• Compliance with EN50081-1, EN50082-2, EN61010-1
