PFL weighing forks

Name: Forche Pesatrici PFL
SKU: VZFP-1T5-1200-2A
Availability: InStock

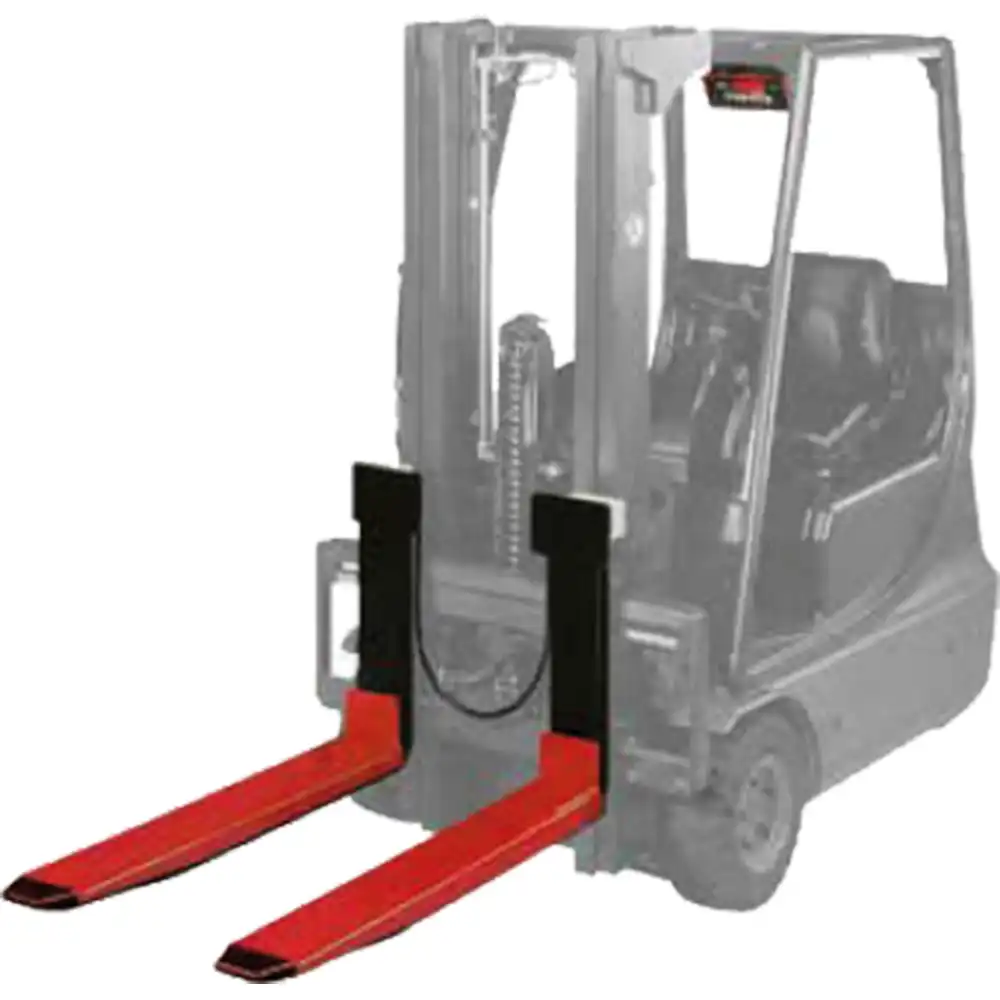

Coppia di forche con pesatura integrata per carrelli elevatori.
Disponibili per piastra FEM2A o FEM2B (fino a max. 2500 kg) oppure FEM3A (fino a max 5000 kg). Anche se lo spes-sore delle forche risulta aumentato questa solu zio ne offre la massima semplicità di montaggio, e non com porta ridu-zione della portata del carrello elevatore. Le forche devono essere semplicemente sostituite a quelle del carrello.

Capacity

-

Division

-

Features

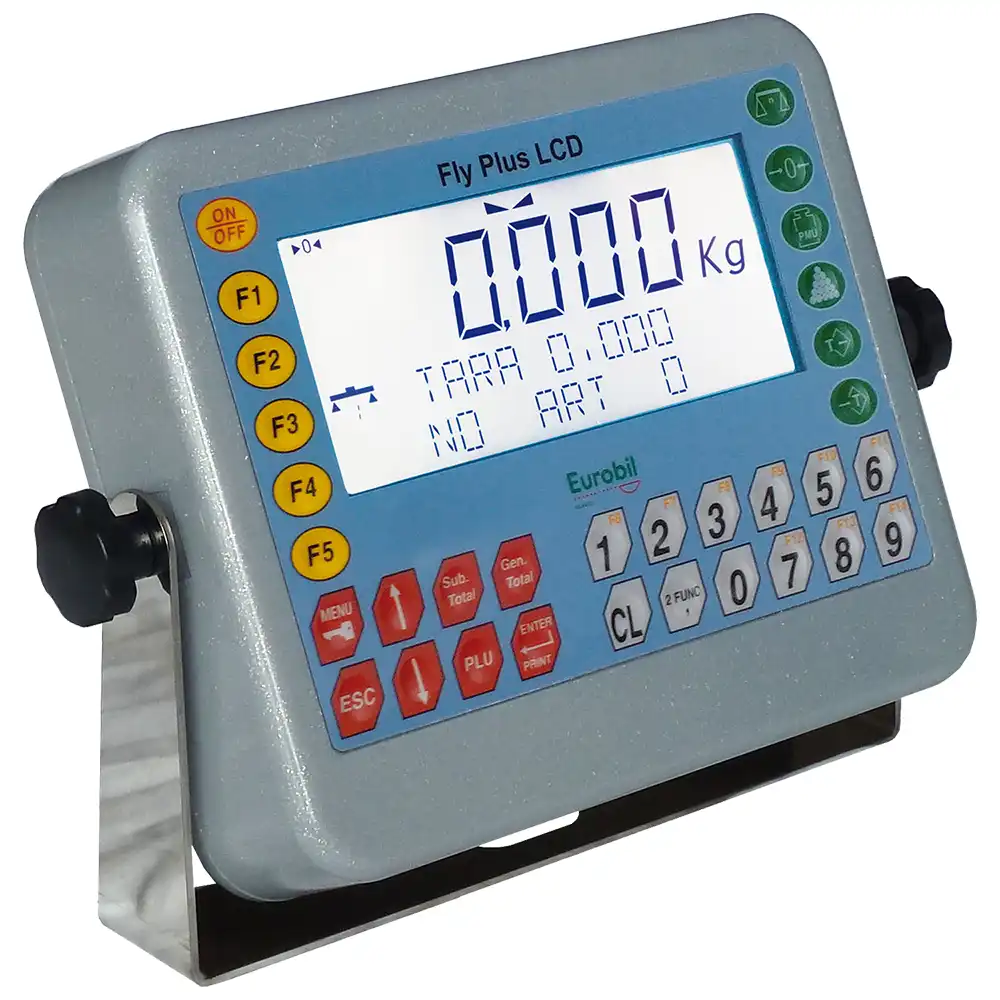

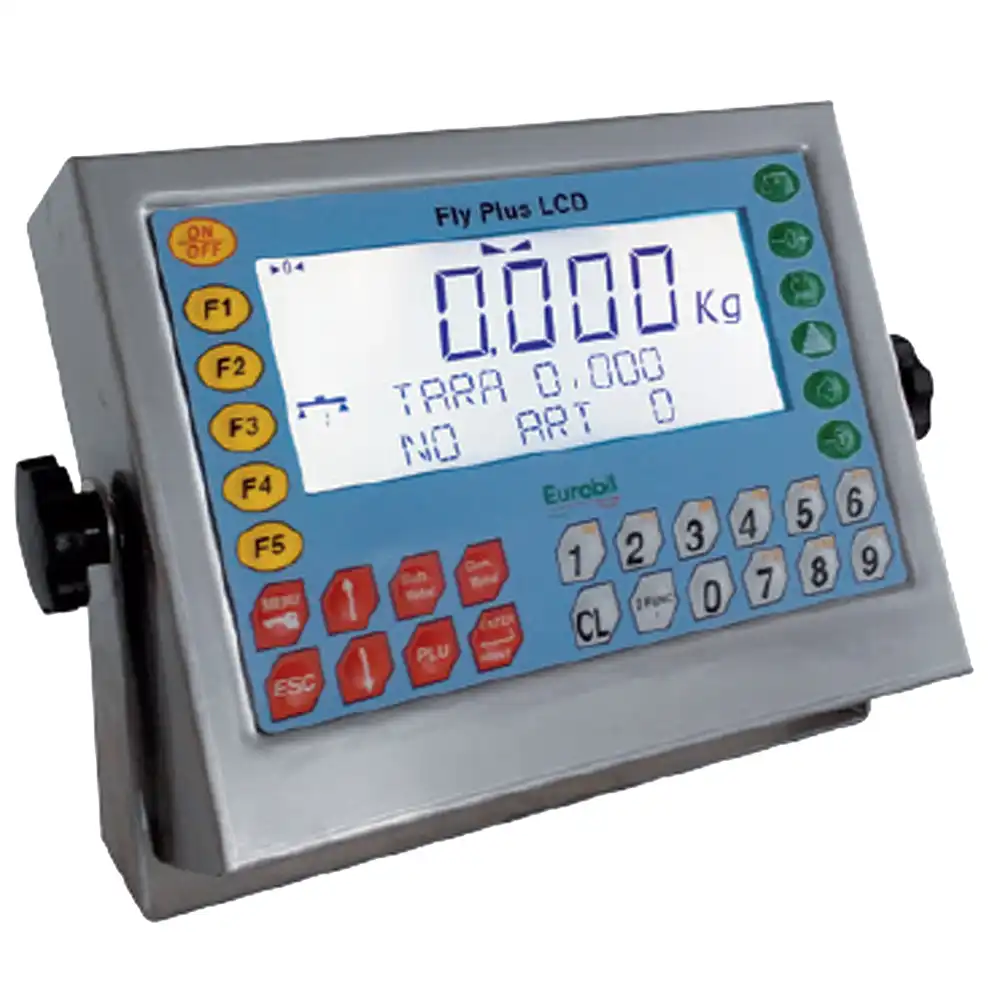

FLY/PLUS weight display
• ABS enclosure
• 20mm weight indicator 32-button keypad
• 1 RS-232 serial interface
• Self-weighted, manual and cumulative tare
• Connection to weight repeater or printer PC
• Version for oil mills (loading-unloading)

Options:
• RS-422/485
• Connection second platform
• Analogue card 0- 10V / 4-20mA
• Available versions PFL weighing forks
• 2In/2Out board with relay
• Setting two weight thresholds

SELECTABLE FUNCTIONS
• High resolution visualisation x 10
• Net/Gross
• PEAK (highest value detected)
• Totalisation
• HOLD (displayed weight lock)

KEYBOARD FUNCTIONS
• Zeroing, Automatic tare, Presettable tare, Totalisation, enter, on/off

Description	Code
Connection module	OGE0-RF868

Data Sheets

Depliant pesatura in movimento.pdf

Forche Pesatrici.pdf

User Manuals

Please login to download

Models

Description	Capacity	Division	E	Code
{« it-IT »: »Forche Pesatrici PFL Piastra FEM2A », »en-GB »: »Pfl weighing forks Plate FEM2A »}	2500 Kg	1 Kg	1 Kg	ZFP-1T5-1200-2A
{« it-IT »: »Forche Pesatrici PFL Piastra FEM2B », »en-GB »: »Pfl weighing forks Plate FEM2B »}	2500 Kg	1 Kg	1 Kg	ZFP-1T5-1200-2B
{« it-IT »: »Forche Pesatrici PFL Piastra FEM3A », »en-GB »: »Pfl weighing forks Plate FEM3A »}	5000 Kg	2 Kg	2 Kg	ZFP-1T5-1200-3A
