Capacity
-
Division
-
Features

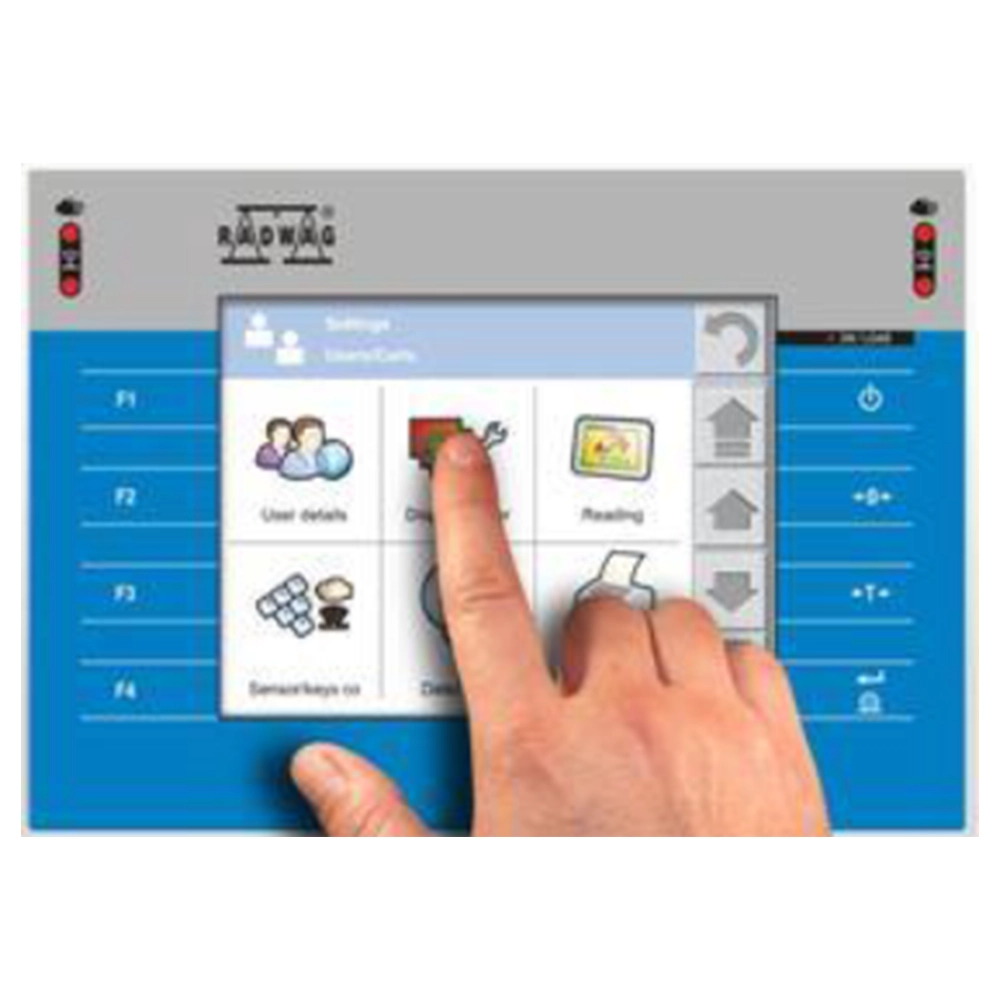

The scales of the WLY.KTP series are equipped with a pre-set working mode for end-of-line control of pre-packaged products. The process is based on product and operator databases. Control guided by the scale, which, based on the size of the batch to be checked, indicates how many samples are necessary. Also available is the "Internal Control" mode in which the operator establishes the control criteria. Scales equipped with a 5.7" color touch screen display which indicates all the information relating to the ongoing check and the result of the check itself.

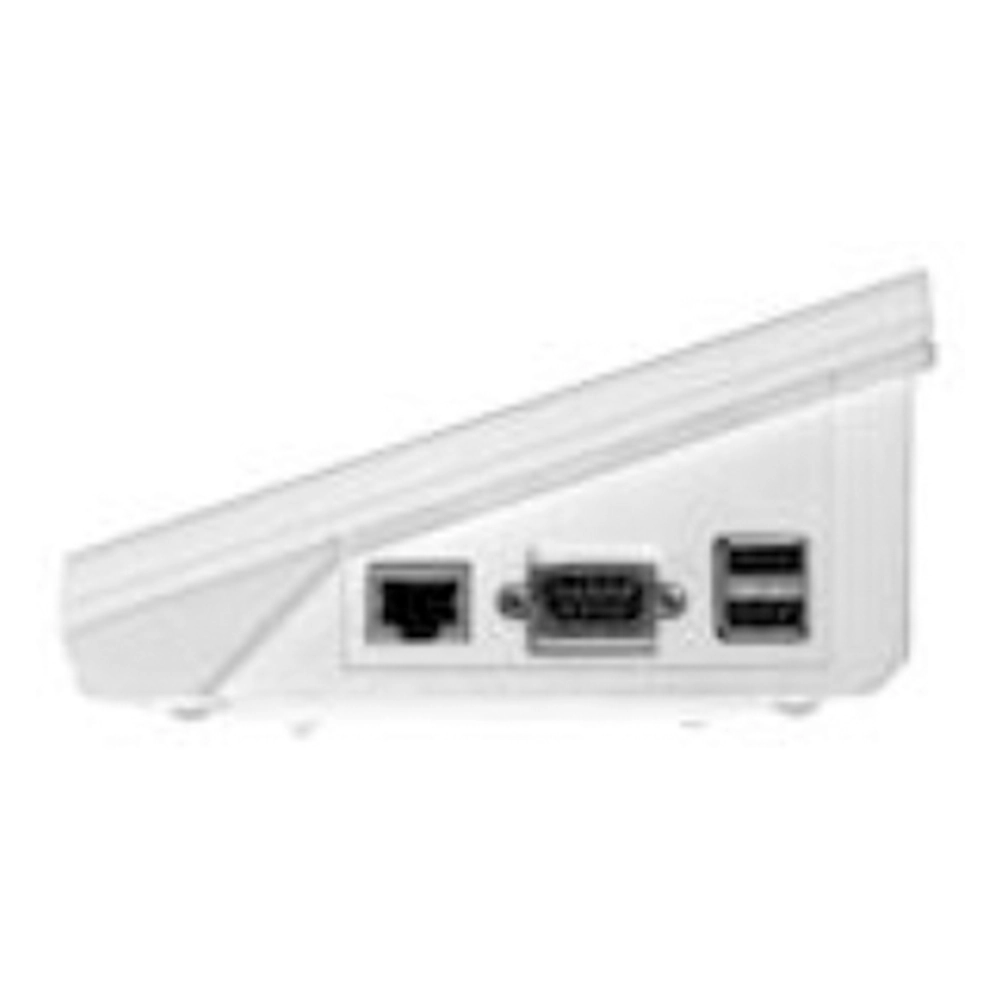

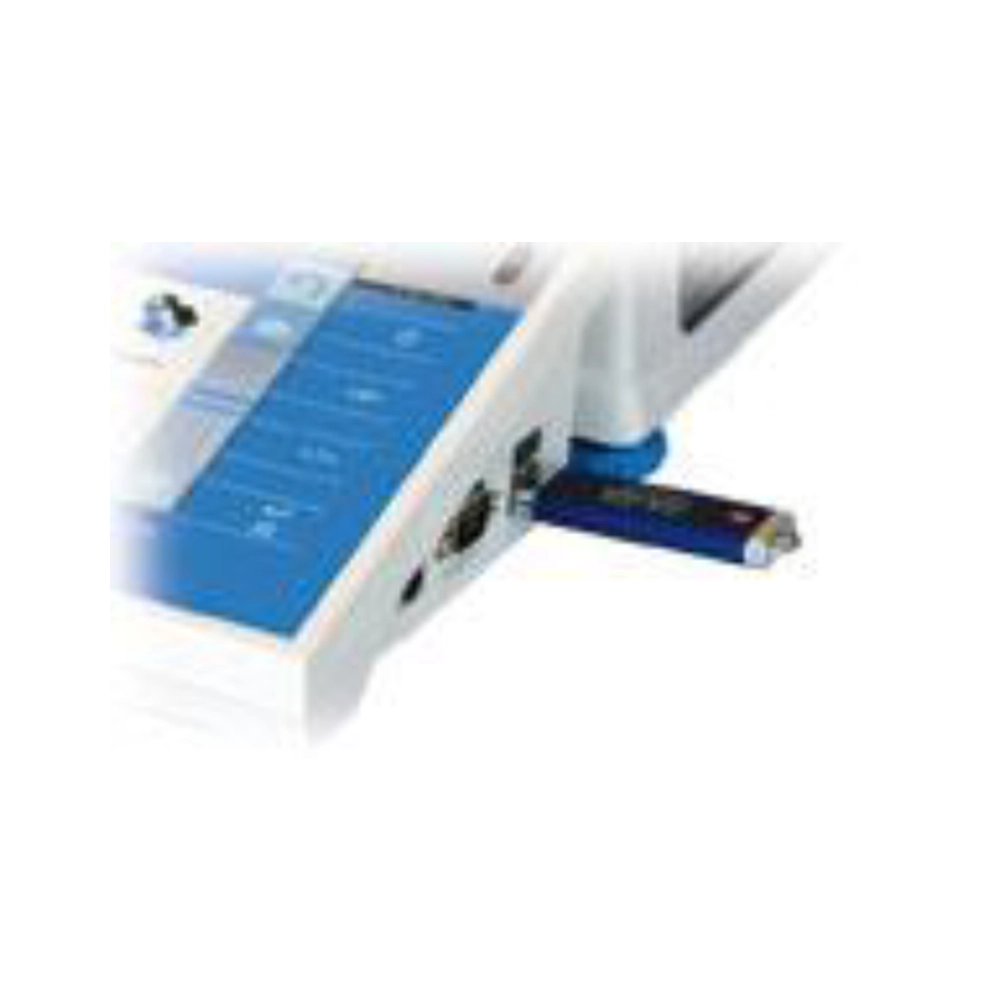

WLY.KTP scales can cooperate with other scales in multi-stand network version – KTP-NET PC software. Connectable tools: barcode scanners, labelers, badge/RFID readers, USB storage devices.
Data Sheets
User Manuals
Please login to download
Models
Description | Capacity | Division | E | Dimensioni Piatto |
---|---|---|---|---|
WLY 0,6/1,2 /PGC/D2 | 06/12 Kg | 0.1/0.2 g | 0.1/0.2 g | 195 x 195 mm |
WLY 3/6/PGC/D2 | 3/6 Kg | 0.5/1.0 g | 0.5/1.0 g | 195 x 195 mm |
WLY 6/PGC/D2 | 6 Kg | 1 g | 1 g | 195 x 195 mm |
WLY 6/12 /PGC/D2 | 6/12 Kg | 1/2 g | 1/2 g | 195 x 195 mm |
WLY 6/PGC/F1/R | 6 Kg | 1 g | 1 g | 300 x 300 mm |
WLY 6/PGC/F1/K | 6 Kg | 1 g | 1 g | 300 x 300 mm |
WLY 6/12 /PGC/F1/R | 6/12 Kg | 1/2 g | 1/2 g | 300 x 300 mm |
WLY 6/12/PGC/F1/K | 6/12 Kg | 1/2 g | 1/2 g | 300 x 300 mm |
WLY 60/PGC/C2/R | 60 Kg | 10 g | 10 g | 500 x 400 mm |
WLY 60/PGC/C2/K | 60 Kg | 10 g | 10 g | 500 x 400 mm |
WLY 60/120 /PGC/C2/R | 60/120 Kg | 10/20 g | 10/20 g | 500 x 400 mm |
WLY 60/120 /PGC/C2/K | 60/120 Kg | 10/20 g | 10/20 g | 500 x 400 mm |
