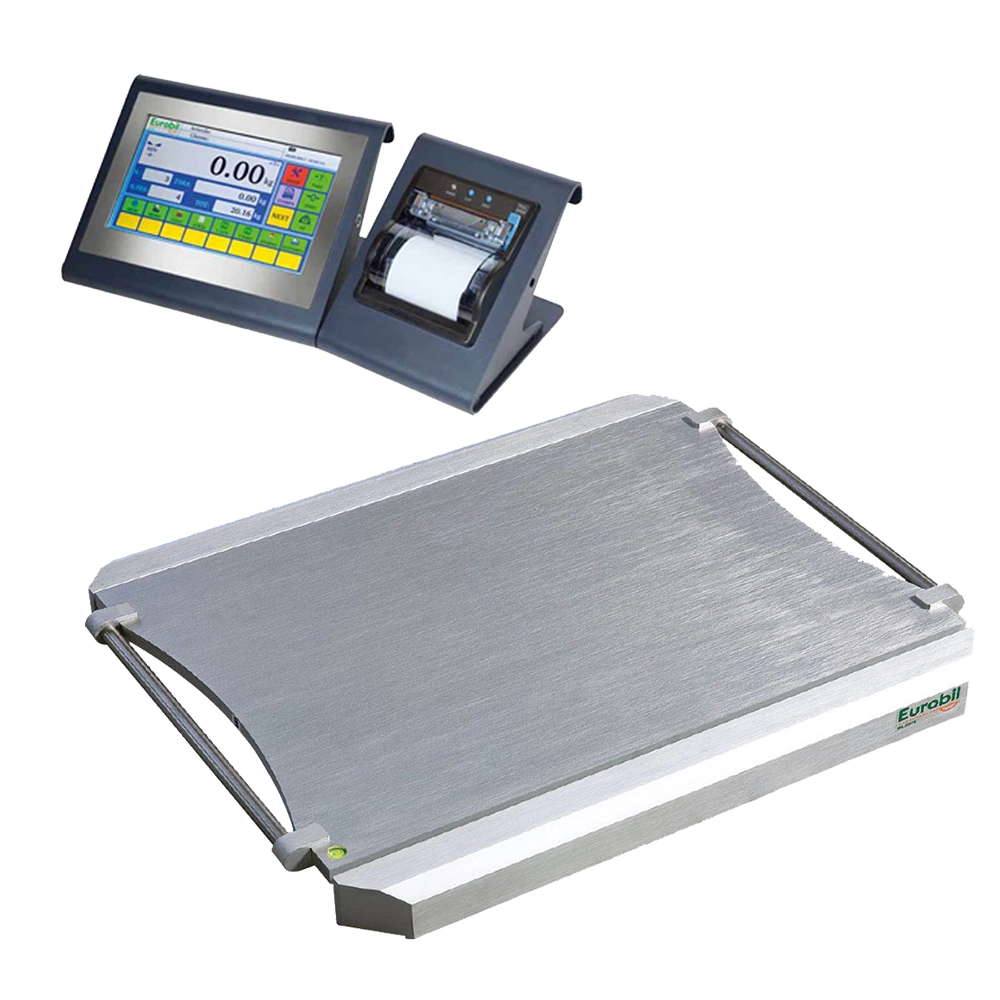

Wheel weighing platforms

Privacy

Capacity

-

Division

-


Features

• Platforms designed for mobile weighing stations for vehicles with variable dimensions (cars, vans, trucks, etc.).
• Single aluminium platform structure with built-in access ramps and handle for transport.
• Special vulcanised non-slip rubber applied underneath each platform to ensure maximum grip on all surfaces.
• Weight measurement by 4 stainless steel shear beam load cells, approved up to 4000 divisions and with IP69 protection.
• Weight: approx. 23kg (platform 530x645x53mm) and 42kg (platform 965x607x61mm).
• 10m cable with connector to plug the platform to the weight indicator.
• Radio frequency module (optional) including: a transmitter with a battery pack for each platform and a receiver to be placed on the weight display.

DescriptionCode
Modulo di connessioneConnection moduleOGE0-RF868

User Manuals

Please login to download

Models

DescriptionDimensionsCapacityDivisionCode
{«it-IT»:»1.500 pa»,»en-GB»:»1.500 pa»}530 × 645 × 531500 Kg0.5 gPGI01T5 - 530X645
{«it-IT»:»3.000 pa»,»en-GB»:»3.000 pa»}530 × 645 × 533000 Kg1 gPGI03T0 - 530X645
{«it-IT»:»6.000 pa»,»en-GB»:»6.000 pa»}530 × 645 × 536000 Kg2 gPGI06T0 - 530X645
{«it-IT»:»10.000 pa»,»en-GB»:»10.000 pa»}530 × 645 × 5310000 Kg5 gPGI010T-530X645
{«it-IT»:»10.000 pa»,»en-GB»:»10.000 pa»}965 × 607 × 6110000 Kg5 gPGI010T-965X607
