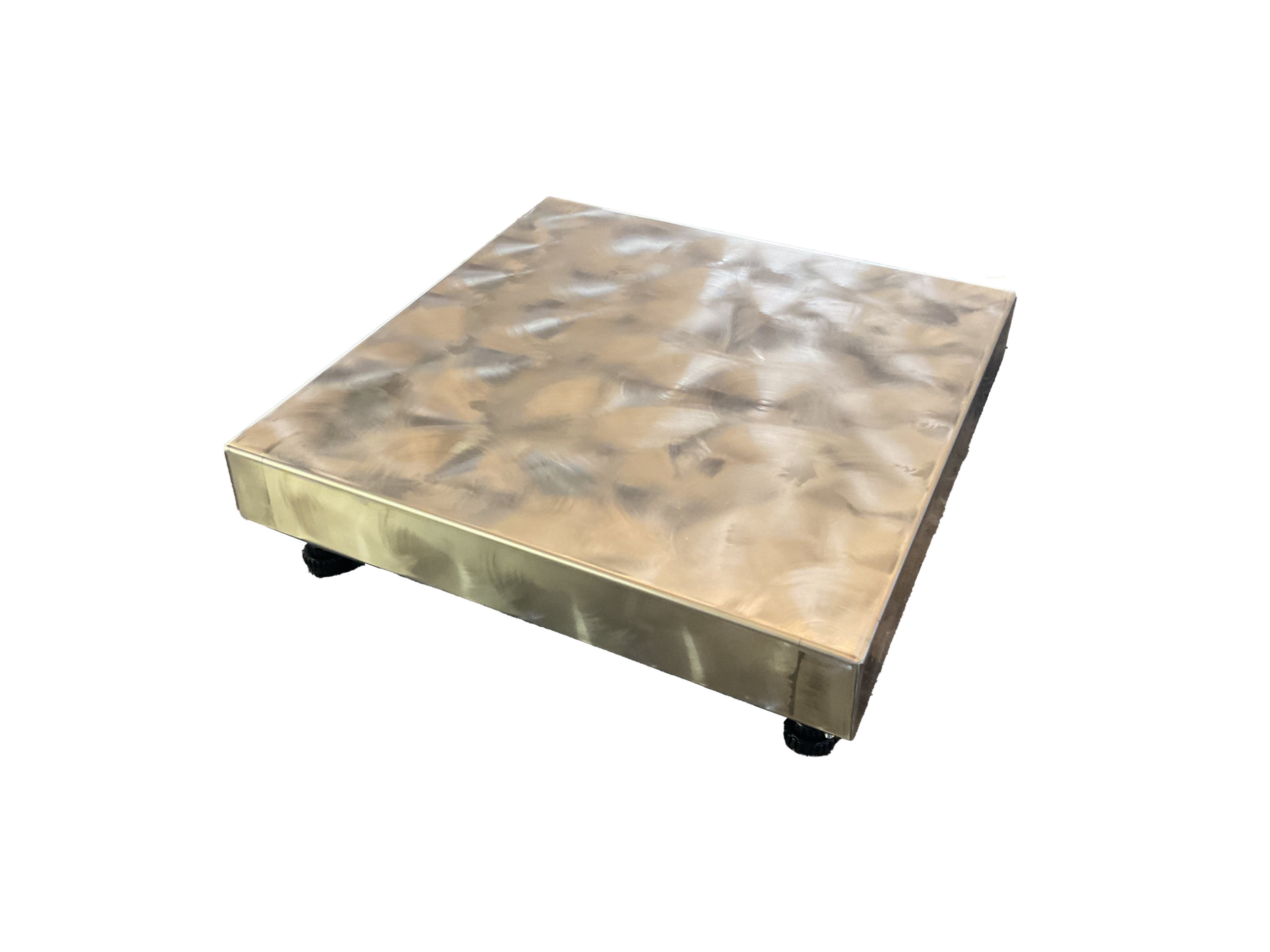

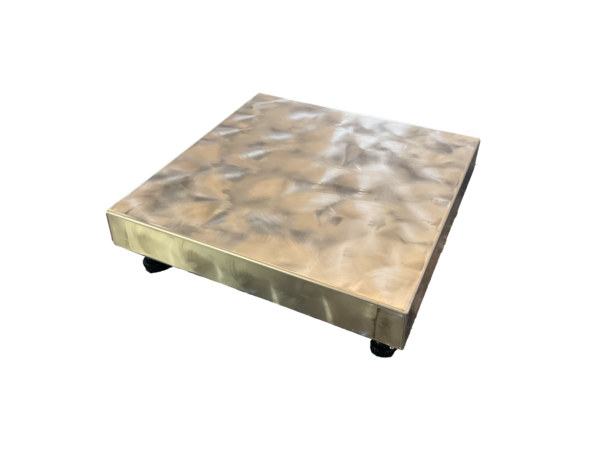

Piattaforme monocella Mercury 24
Capacity
-
Division
-
Features
Small and medium capacity electronic platforms, with offcenter load cell, approved. Stainless steel platform, compatible with any load cell indicator.
• Uses OIML R60-approved aluminium single point load cell with dust and moisture protection to IP65 standards (350 Ohm input resistance).
• Oven-baked tubular steel structure, adjustable support feet a nd level. Standard satin-finished AISI 304 stainless steel loading surface. Power supply Max. 15 VDC.
• 3 m shielded connection cable with connectors for connection to the indicator.
Accessories not found
Data Sheets
User Manuals
Please login to download
Models
| Description | Dimensions | Capacity | Division | Code |
|---|---|---|---|---|
| 400 x 400 | 400 × 125 × 400 cm | 60 Kg | 20 g | PMERCURY403060 |
| 400 x 400 | 400 × 130 × 400 cm | 150 Kg | 50 g | PMERCURY403150 |
| 600 x 600 | 600 × 150 × 600 cm | 60 Kg | 20 g | PMERCURY603060 |
| 600 x 600 | 600 × 150 × 600 cm | 150 Kg | 50 g | PMERCURY603150 |
| 600 x 600 | 600 × 150 × 600 cm | 300 Kg | 100 g | PMERCURY603000 |
| 800 x 800 | 800 × 170 × 800 cm | 300 Kg | 100 g | PMERCURY803000 |
| 800 x 800 | 800 × 170 × 800 cm | 600 Kg | 200 g | PMERCURY806000 |
