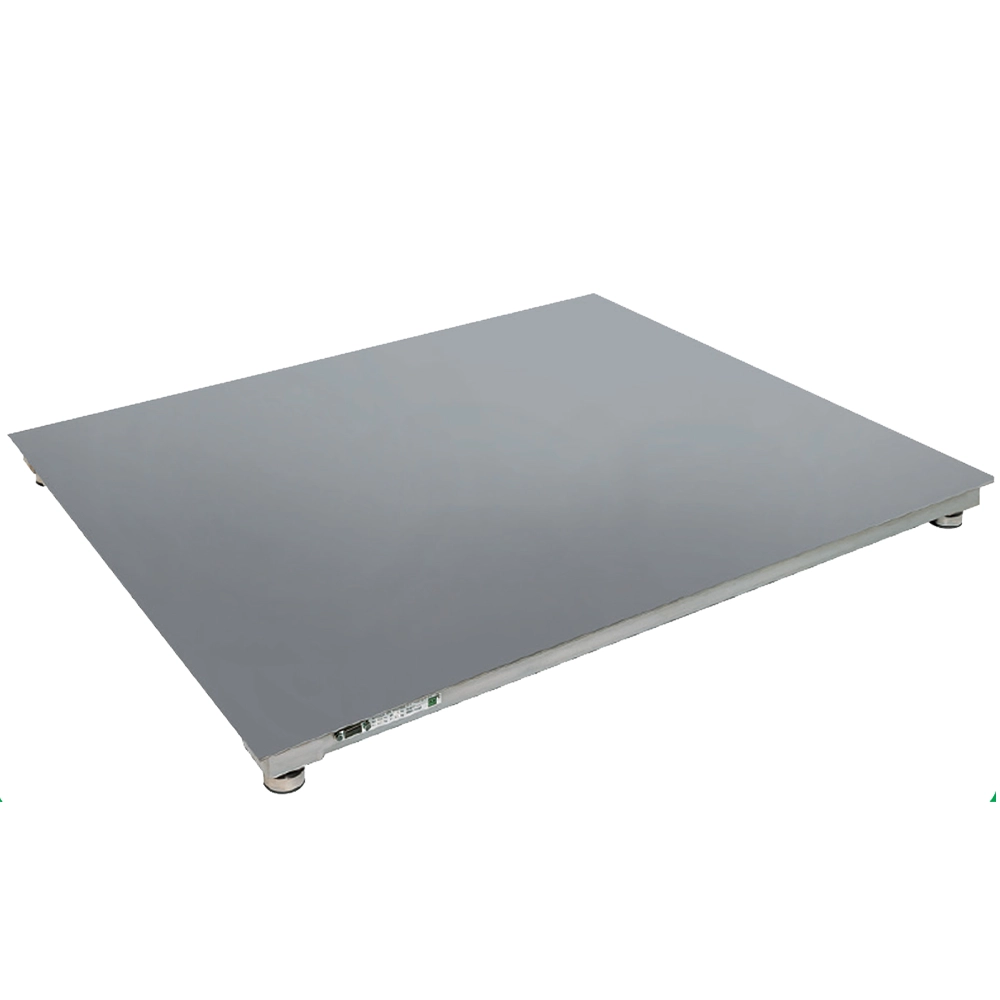

Pvs/c type 4-cell platforms to be buried flush with the floor and above ground
Capacity
-
Division
-
Features
• Single-structure weighing platform in painted steel (with smooth plate).
• Weight measurement by 4 stainless steel shear beam load cells, approved up to 3000 divisions and with IP67 protection.
• Shielded 5m display connection cable.
• Self-centring articulated feet for each load cell and spirit level.
• Junction box with card, connectors and IP68 protection.
• Frame for foundation pit with 4 support leg corners (optional)
| Description | Code |
|---|---|
 Hand truck for platform stand | CAVALLETTO |
 Sheathing insulation | OGE1COB |
Data Sheets
User Manuals
Please login to download
Models
| Description | Dimensions | Capacity | Division | 1° Range | Finish | Code |
|---|---|---|---|---|---|---|
| Pvs/c type 4-cell platforms to be buried flush with the floor and above ground | 80 × 80 cm | 150 Kg | 50 g | 60 Kg - 20 g | Painted | PSC0150-080X080 |
| Pvs/c type 4-cell platforms to be buried flush with the floor and above ground | 80 × 80 cm | 300 Kg | 100 g | 150 Kg - 50 g | Painted | PSC0300-080X080 |
| Pvs/c type 4-cell platforms to be buried flush with the floor and above ground | 80 × 80 cm | 600 Kg | 200 g | 300 Kg - 100 g | Painted | PSC0600-080X080 |
| Pvs/c type 4-cell platforms to be buried flush with the floor and above ground | 100 × 100 cm | 300 Kg | 100 g | 150 Kg - 50 g | Painted | PSC0300-100X100 |
| Pvs/c type 4-cell platforms to be buried flush with the floor and above ground | 100 × 100 cm | 600 Kg | 200 g | 300 Kg - 100 g | Painted | PSC0600-100X100 |
| Pvs/c type 4-cell platforms to be buried flush with the floor and above ground | 100 × 100 cm | 1500 Kg | 500 g | 600 Kg - 200 g | Painted | PSC01T5-100X100 |
| Pvs/c type 4-cell platforms to be buried flush with the floor and above ground | 100 × 125 cm | 600 Kg | 200 g | 300 Kg - 100 g | Painted | PSC0600-100X125 |
| Pvs/c type 4-cell platforms to be buried flush with the floor and above ground | 100 × 125 cm | 1500 Kg | 500 g | 600 Kg - 200 g | Painted | PSC01T5-100X125 |
| Pvs/c type 4-cell platforms to be buried flush with the floor and above ground | 100 × 125 cm | 3000 Kg | 1000 g | 1500 Kg - 500 g | Painted | PSC03T0-100X125 |
| Pvs/c type 4-cell platforms to be buried flush with the floor and above ground | 125 × 125 cm | 600 Kg | 200 g | 300 Kg - 100 g | Painted | PSC0600-125X125 |
| Pvs/c type 4-cell platforms to be buried flush with the floor and above ground | 125 × 125 cm | 1500 Kg | 500 g | 600 Kg - 200 g | Painted | PSC01T5-125X125 |
| Pvs/c type 4-cell platforms to be buried flush with the floor and above ground | 125 × 125 cm | 3000 Kg | 1000 g | 1500 Kg - 500 g | Painted | PSC03T0-125X125 |
| Pvs/c type 4-cell platforms to be buried flush with the floor and above ground | 125 × 150 cm | 600 Kg | 200 g | 300 Kg - 100 g | Painted | PSC0600-125X150 |
| Pvs/c type 4-cell platforms to be buried flush with the floor and above ground | 125 × 150 cm | 1500 Kg | 500 g | 600 Kg - 200 g | Painted | PSC01T5-125X150 |
| Pvs/c type 4-cell platforms to be buried flush with the floor and above ground | 125 × 150 cm | 3000 Kg | 1000 g | 1500 Kg - 500 g | Painted | PSC03T0-125X150 |
| Pvs/c type 4-cell platforms to be buried flush with the floor and above ground | 150 × 150 cm | 600 Kg | 200 g | 300 Kg - 100 g | Painted | PSC0600-150X150 |
| Pvs/c type 4-cell platforms to be buried flush with the floor and above ground | 150 × 150 cm | 1500 Kg | 500 g | 600 Kg - 200 g | Painted | PSC01T5-150X150 |
| Pvs/c type 4-cell platforms to be buried flush with the floor and above ground | 125 × 200 cm | 3000 Kg | 1000 g | 1500 Kg - 500 g | Painted | PSC03T0-150X150 |
| Pvs/c type 4-cell platforms to be buried flush with the floor and above ground | 125 × 200 cm | 600 Kg | 200 g | 300 Kg - 100 g | Painted | PSC0600-125X200 |
| Pvs/c type 4-cell platforms to be buried flush with the floor and above ground | 125 × 200 cm | 1500 Kg | 500 g | 600 Kg - 200 g | Painted | PSC01T5-125X200 |
| Pvs/c type 4-cell platforms to be buried flush with the floor and above ground | 125 × 200 cm | 3000 Kg | 1000 g | 1500 Kg - 500 g | Painted | PSC03T0-125X200 |
| Pvs/c type 4-cell platforms to be buried flush with the floor and above ground | 150 × 200 cm | 600 Kg | 200 g | 300 Kg - 100 g | Painted | PSC0600-150X200 |
| Pvs/c type 4-cell platforms to be buried flush with the floor and above ground | 150 × 200 cm | 1500 Kg | 500 g | 600 Kg - 200 g | Painted | PSC01T5-150X200 |
| Pvs/c type 4-cell platforms to be buried flush with the floor and above ground | 150 × 200 cm | 3000 Kg | 1000 g | 1500 Kg - 500 g | Painted | PSC03T0-150X200 |
