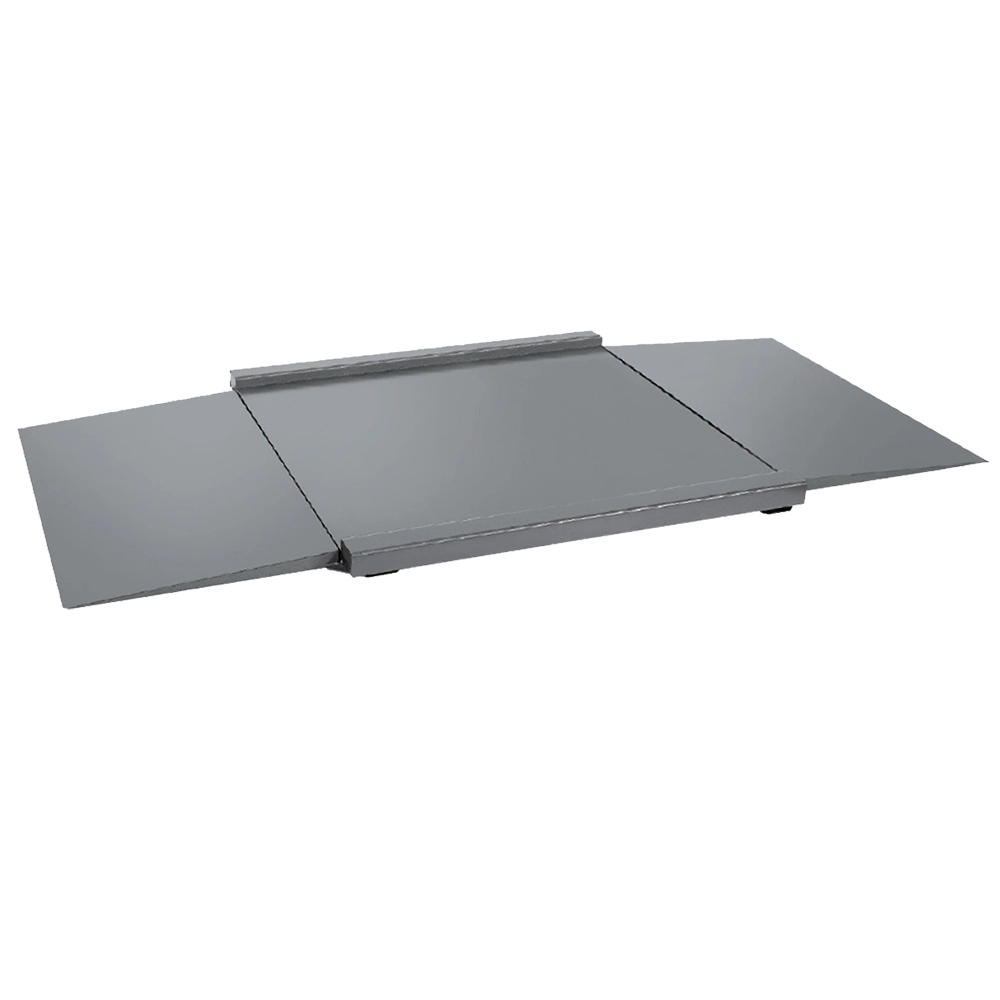

Plp- ype 4-celllow-profile platforms
Capacity
-
Division
-
Features
• Single-structure weighing platform in painted steel (with smooth plate) or stainless steel (with circle polished plate) for installation above floor.
• Weight measurement by 4 stainless steel shear beam load cells, approved up to 4000 divisions and with IP67 protection (for the painted steel platform) or with IP69 protection (for the stainless steel platform).
• Shielded 5m display connection cable.
• Self-centring articulated feet for each load cell and spirit level.
• Junction box with card, connectors and IP68 protection.
• 2 gently sloping ramps of approx. 60 cm in length ideal for weighing trolleys or pallet trucks.
| Description | Code |
|---|---|
 Sheathing insulation | OGE1COB |
Data Sheets
User Manuals
Please login to download
Models
| Description | Dimensions | Capacity | Division | 1° Range | Finish | Code |
|---|---|---|---|---|---|---|
| {«it-IT»:»Piattaforme a 4 celle tipo PLP a profilo ribassato»,»en-GB»:»Plp- ype 4-cell low-profile platforms»} | 80 × 80 cm | 150 Kg | 50 g | 60 Kg - 20 g | Painted | PLP0150-080X080 |
| {«it-IT»:»Piattaforme a 4 celle tipo PLP a profilo ribassato»,»en-GB»:»Plp- ype 4-cell low-profile platforms»} | 80 × 80 cm | 150 Kg | 50 g | 60 Kg - 20 g | Inox | PLP1150-080X080 |
| {«it-IT»:»Piattaforme a 4 celle tipo PLP a profilo ribassato»,»en-GB»:»Plp- ype 4-cell low-profile platforms»} | 80 × 80 cm | 300 Kg | 100 g | 150 Kg - 50 g | Painted | PLP0300-080X080 |
| {«it-IT»:»Piattaforme a 4 celle tipo PLP a profilo ribassato»,»en-GB»:»Plp- ype 4-cell low-profile platforms»} | 80 × 80 cm | 300 Kg | 100 g | 150 Kg - 50 g | Inox | PLP1300-080X080 |
| {«it-IT»:»Piattaforme a 4 celle tipo PLP a profilo ribassato»,»en-GB»:»Plp- ype 4-cell low-profile platforms»} | 80 × 80 cm | 600 Kg | 200 g | 300 Kg - 100 g | Painted | PLP0600-080X080 |
| {«it-IT»:»Piattaforme a 4 celle tipo PLP a profilo ribassato»,»en-GB»:»Plp- ype 4-cell low-profile platforms»} | 80 × 80 cm | 600 Kg | 200 g | 300 Kg - 100 g | Inox | PLP1600-080X080 |
| {«it-IT»:»Piattaforme a 4 celle tipo PLP a profilo ribassato»,»en-GB»:»Plp- ype 4-cell low-profile platforms»} | 100 × 100 cm | 300 Kg | 100 g | 150 Kg - 50 g | Painted | PLP0300-100X100 |
| {«it-IT»:»Piattaforme a 4 celle tipo PLP a profilo ribassato»,»en-GB»:»Plp- ype 4-cell low-profile platforms»} | 100 × 100 cm | 300 Kg | 100 g | 150 Kg - 50 g | Inox | PLP1300-100X100 |
| {«it-IT»:»Piattaforme a 4 celle tipo PLP a profilo ribassato»,»en-GB»:»Plp- ype 4-cell low-profile platforms»} | 100 × 100 cm | 600 Kg | 200 g | 300 Kg - 100 g | Painted | PLP0600-100X100 |
| {«it-IT»:»Piattaforme a 4 celle tipo PLP a profilo ribassato»,»en-GB»:»Plp- ype 4-cell low-profile platforms»} | 100 × 100 cm | 600 Kg | 200 g | 300 Kg - 100 g | Inox | PLP1600-100X100 |
| {«it-IT»:»Piattaforme a 4 celle tipo PLP a profilo ribassato»,»en-GB»:»Plp- ype 4-cell low-profile platforms»} | 100 × 100 cm | 1500 Kg | 500 g | 600 Kg - 200 g | Painted | PLP01T5-100X100 |
| {«it-IT»:»Piattaforme a 4 celle tipo PLP a profilo ribassato»,»en-GB»:»Plp- ype 4-cell low-profile platforms»} | 100 × 100 cm | 1500 Kg | 500 g | 600 Kg - 200 g | Inox | PLP11T5-100X100 |
| {«it-IT»:»Piattaforme a 4 celle tipo PLP a profilo ribassato»,»en-GB»:»Plp- ype 4-cell low-profile platforms»} | 100 × 125 cm | 300 Kg | 100 g | 150 Kg - 50 g | Painted | PLP0300-100X125 |
| {«it-IT»:»Piattaforme a 4 celle tipo PLP a profilo ribassato»,»en-GB»:»Plp- ype 4-cell low-profile platforms»} | 100 × 125 cm | 300 Kg | 100 g | 150 Kg - 50 g | Inox | PLP1300-100X125 |
| {«it-IT»:»Piattaforme a 4 celle tipo PLP a profilo ribassato»,»en-GB»:»Plp- ype 4-cell low-profile platforms»} | 100 × 125 cm | 600 Kg | 200 g | 300 Kg - 100 g | Painted | PLP0600-100X125 |
| {«it-IT»:»Piattaforme a 4 celle tipo PLP a profilo ribassato»,»en-GB»:»Plp- ype 4-cell low-profile platforms»} | 100 × 125 cm | 600 Kg | 200 g | 300 Kg - 100 g | Inox | PLP1600-100X125 |
| {«it-IT»:»Piattaforme a 4 celle tipo PLP a profilo ribassato»,»en-GB»:»Plp- ype 4-cell low-profile platforms»} | 100 × 125 cm | 1500 Kg | 500 g | 600 Kg - 200 g | Painted | PLP01T5-100X125 |
| {«it-IT»:»Piattaforme a 4 celle tipo PLP a profilo ribassato»,»en-GB»:»Plp- ype 4-cell low-profile platforms»} | 100 × 125 cm | 1500 Kg | 500 g | 600 Kg - 200 g | Inox | PLP11T5-100X125 |
| {«it-IT»:»Piattaforme a 4 celle tipo PLP a profilo ribassato»,»en-GB»:»Plp- ype 4-cell low-profile platforms»} | 125 × 125 cm | 300 Kg | 100 g | 150 Kg - 50 g | Painted | PLP0300-125X125 |
| {«it-IT»:»Piattaforme a 4 celle tipo PLP a profilo ribassato»,»en-GB»:»Plp- ype 4-cell low-profile platforms»} | 125 × 125 cm | 300 Kg | 100 g | 150 Kg - 50 g | Inox | PLP1300-125X125 |
| {«it-IT»:»Piattaforme a 4 celle tipo PLP a profilo ribassato»,»en-GB»:»Plp- ype 4-cell low-profile platforms»} | 125 × 125 cm | 600 Kg | 200 g | 300 Kg - 100 g | Painted | PLP0600-125X125 |
| {«it-IT»:»Piattaforme a 4 celle tipo PLP a profilo ribassato»,»en-GB»:»Plp- ype 4-cell low-profile platforms»} | 125 × 125 cm | 600 Kg | 200 g | 300 Kg - 100 g | Inox | PLP1600-125X125 |
| {«it-IT»:»Piattaforme a 4 celle tipo PLP a profilo ribassato»,»en-GB»:»Plp- ype 4-cell low-profile platforms»} | 125 × 125 cm | 1500 Kg | 500 g | 600 Kg - 200 g | Painted | PLP01T5-125X125 |
| {«it-IT»:»Piattaforme a 4 celle tipo PLP a profilo ribassato»,»en-GB»:»Plp- ype 4-cell low-profile platforms»} | 125 × 125 cm | 1500 Kg | 500 g | 600 Kg - 200 g | Inox | PLP11T5-125X125 |
| {«it-IT»:»Piattaforme a 4 celle tipo PLP a profilo ribassato»,»en-GB»:»Plp- ype 4-cell low-profile platforms»} | 125 × 150 cm | 300 Kg | 100 g | 150 Kg - 50 g | Painted | PLP0300-125X150 |
| {«it-IT»:»Piattaforme a 4 celle tipo PLP a profilo ribassato»,»en-GB»:»Plp- ype 4-cell low-profile platforms»} | 125 × 150 cm | 300 Kg | 100 g | 150 Kg - 50 g | Inox | PLP1300-125X150 |
| {«it-IT»:»Piattaforme a 4 celle tipo PLP a profilo ribassato»,»en-GB»:»Plp- ype 4-cell low-profile platforms»} | 125 × 150 cm | 600 Kg | 200 g | 300 Kg - 100 g | Painted | PLP0600-125X150 |
| {«it-IT»:»Piattaforme a 4 celle tipo PLP a profilo ribassato»,»en-GB»:»Plp- ype 4-cell low-profile platforms»} | 125 × 150 cm | 600 Kg | 200 g | 300 Kg - 100 g | Inox | PLP1600-125X150 |
| {«it-IT»:»Piattaforme a 4 celle tipo PLP a profilo ribassato»,»en-GB»:»Plp- ype 4-cell low-profile platforms»} | 125 × 150 cm | 1500 Kg | 500 g | 600 Kg - 200 g | Painted | PLP01T5-125X150 |
| {«it-IT»:»Piattaforme a 4 celle tipo PLP a profilo ribassato»,»en-GB»:»Plp- ype 4-cell low-profile platforms»} | 125 × 150 cm | 1500 Kg | 500 g | 600 Kg - 200 g | Inox | PLP11T5-125X150 |
| {«it-IT»:»Piattaforme a 4 celle tipo PLP a profilo ribassato»,»en-GB»:»Plp- ype 4-cell low-profile platforms»} | 125 × 200 cm | 300 Kg | 100 g | 150 Kg - 50 g | Painted | PLP0300-125X200 |
| {«it-IT»:»Piattaforme a 4 celle tipo PLP a profilo ribassato»,»en-GB»:»Plp- ype 4-cell low-profile platforms»} | 125 × 200 cm | 300 Kg | 100 g | 150 Kg - 50 g | Inox | PLP1300-125X200 |
| {«it-IT»:»Piattaforme a 4 celle tipo PLP a profilo ribassato»,»en-GB»:»Plp- ype 4-cell low-profile platforms»} | 125 × 200 cm | 600 Kg | 200 g | 300 Kg - 100 g | Painted | PLP0600-125X200 |
| {«it-IT»:»Piattaforme a 4 celle tipo PLP a profilo ribassato»,»en-GB»:»Plp- ype 4-cell low-profile platforms»} | 125 × 200 cm | 600 Kg | 200 g | 300 Kg - 100 g | Inox | PLP1600-125X200 |
| {«it-IT»:»Piattaforme a 4 celle tipo PLP a profilo ribassato»,»en-GB»:»Plp- ype 4-cell low-profile platforms»} | 125 × 200 cm | 1500 Kg | 500 g | 600 Kg - 200 g | Painted | PLP01T5-125X200 |
| {«it-IT»:»Piattaforme a 4 celle tipo PLP a profilo ribassato»,»en-GB»:»Plp- ype 4-cell low-profile platforms»} | 125 × 200 cm | 1500 Kg | 500 g | 600 Kg - 200 g | Inox | PLP11T5-125X200 |
| {«it-IT»:»Piattaforme a 4 celle tipo PLP a profilo ribassato»,»en-GB»:»Plp- ype 4-cell low-profile platforms»} | 150 × 150 cm | 600 Kg | 200 g | 300 Kg - 100 g | Painted | PLP0600-150X150 |
| {«it-IT»:»Piattaforme a 4 celle tipo PLP a profilo ribassato»,»en-GB»:»Plp- ype 4-cell low-profile platforms»} | 150 × 150 cm | 600 Kg | 200 g | 300 Kg - 100 g | Inox | PLP1600-150X150 |
| {«it-IT»:»Piattaforme a 4 celle tipo PLP a profilo ribassato»,»en-GB»:»Plp- ype 4-cell low-profile platforms»} | 150 × 150 cm | 1500 Kg | 500 g | 600 Kg - 200 g | Painted | PLP01T5-150X150 |
| {«it-IT»:»Piattaforme a 4 celle tipo PLP a profilo ribassato»,»en-GB»:»Plp- ype 4-cell low-profile platforms»} | 150 × 150 cm | 1500 Kg | 500 g | 600 Kg - 200 g | Inox | PLP11T5-150X150 |
| {«it-IT»:»Piattaforme a 4 celle tipo PLP a profilo ribassato»,»en-GB»:»Plp- ype 4-cell low-profile platforms»} | 150 × 200 cm | 600 Kg | 200 g | 300 Kg - 100 g | Painted | PLP0600-150X200 |
| {«it-IT»:»Piattaforme a 4 celle tipo PLP a profilo ribassato»,»en-GB»:»Plp- ype 4-cell low-profile platforms»} | 150 × 200 cm | 600 Kg | 200 g | 300 Kg - 100 g | Inox | PLP1600-150X200 |
| {«it-IT»:»Piattaforme a 4 celle tipo PLP a profilo ribassato»,»en-GB»:»Plp- ype 4-cell low-profile platforms»} | 150 × 200 cm | 1500 Kg | 500 g | 600 Kg - 200 g | Painted | PLP01T5-150X200 |
| {«it-IT»:»Piattaforme a 4 celle tipo PLP a profilo ribassato»,»en-GB»:»Plp- ype 4-cell low-profile platforms»} | 150 × 200 cm | 1500 Kg | 500 g | 600 Kg - 200 g | Inox | PLP11T5-150X200 |
