Capacity
-
Division
-
Features

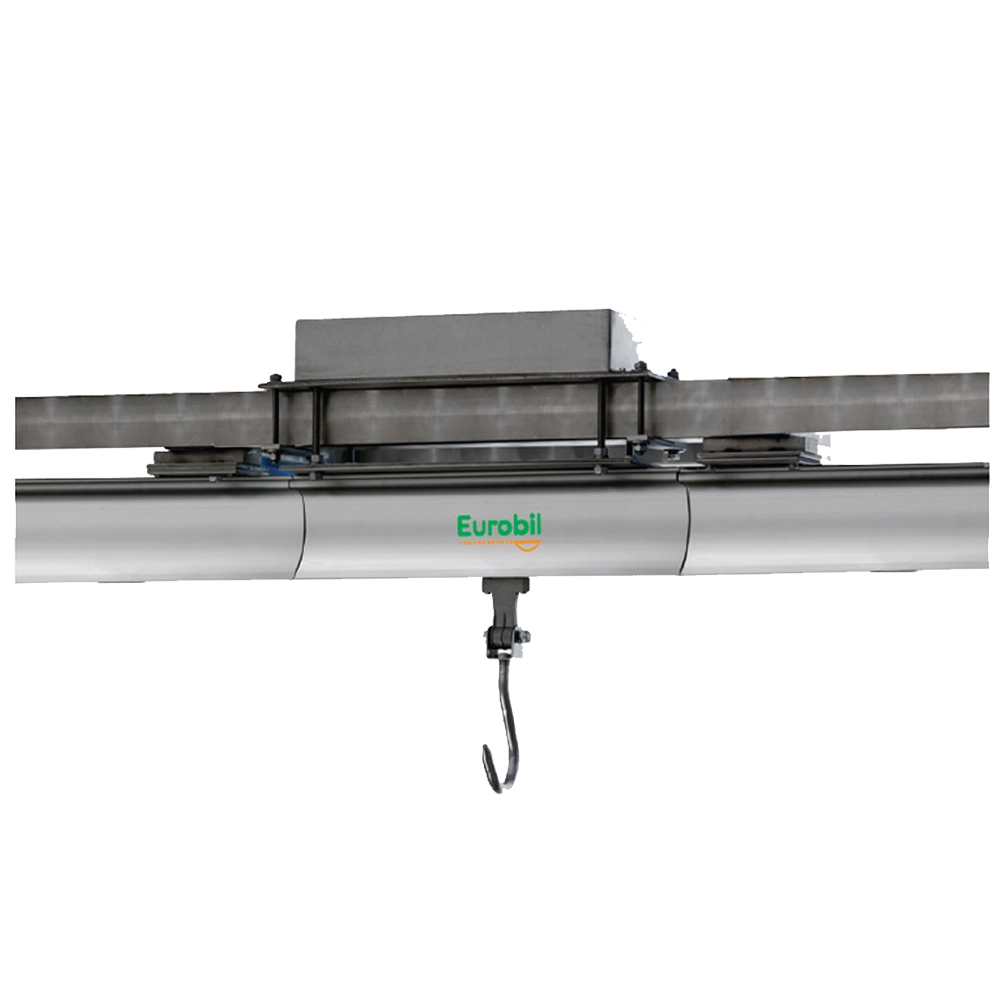

• The overhead weighbridge is inserted into the overhead rail transport lines (monorail) used in slaughterhouses.
• The rail is interrupted in the weighing area and the loose part is fixed to the supporting structure, so that each hook can be weighed without interrupting transport.
• The body of the overhead weighbridge is fixed above the structure supporting the rail and inside are the load cells to which the rail is attached by 4 adjustable tie rods.
• Weight measurement by stainless steel “off centre” load cells, approved up to 4000 divisions and with IP67 protection.
• Two versions available: single cell of maximum 30cm and double cell of maximum 60cm.
• Shielded 5m display connection cable.
• Stainless steel FLY MINI model weight display with bracket and battery (optional).
| Description | Code |
|---|---|
 Sheathing insulation | OGE1COB |
Data Sheets
User Manuals
Please login to download
Models
| Description | Capacity | Division | 1° Range | Finish | Code |
|---|---|---|---|---|---|
| {«it-IT»:»Pesa Aerea Monocella 30 cm max»,»en-GB»:»Single cell weighbridge 30 cm max»} | 150 Kg | 50 g | 60 Kg - 20 g | Inox | SAM1150 |
| {«it-IT»:»Pesa Aerea Due celle 30 cm max»,»en-GB»:»Double cell weighbridge 30 cm max»} | 300 Kg | 100 g | 150 Kg - 50 g | Inox | SAM1300 |
| {«it-IT»:»Pesa Aerea Due celle 60 cm max»,»en-GB»:»Double cell weighbridge 60 cm max»} | 300 Kg | 100 g | 150 Kg - 50 g | Inox | SAD1300 |
| {«it-IT»:»Pesa Aerea Due celle 60 cm max»,»en-GB»:»Double cell weighbridge 60 cm max»} | 600 Kg | 200 g | 300 Kg - 100 g | Inox | SAD1600 |
| {«it-IT»:»Pesa Aerea Due celle 60 cm max»,»en-GB»:»Double cell weighbridge 60 cm max»} | 1500 Kg | 500 g | 600 Kg - 200 g | Inox | SAD11T5 |
