Capacity
-
Division
-
Features
The C315.4P2 series separate support scales guarantee stable weighing thanks to the 4 load cell technology and with greater versatility than normal pallet weighing scales. The variable distance (up to a maximum of 5 meters) between the 2 weighing supports allows the C315.4P2 scales to be adapted to loads of different shapes (crates, bars, large packages, etc.). The loads are loaded on the supports weighed using standard forklifts.

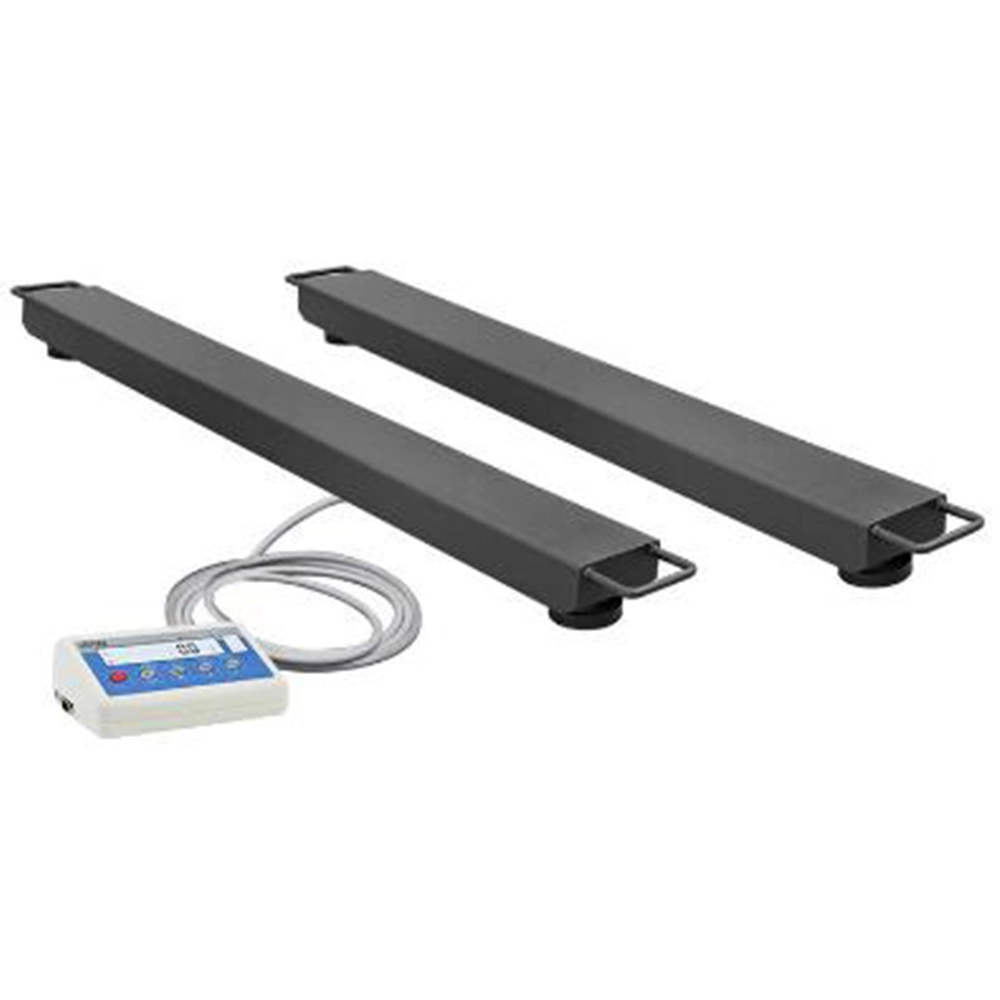

The C315.4P2 series scales are made of powder-coated steel.

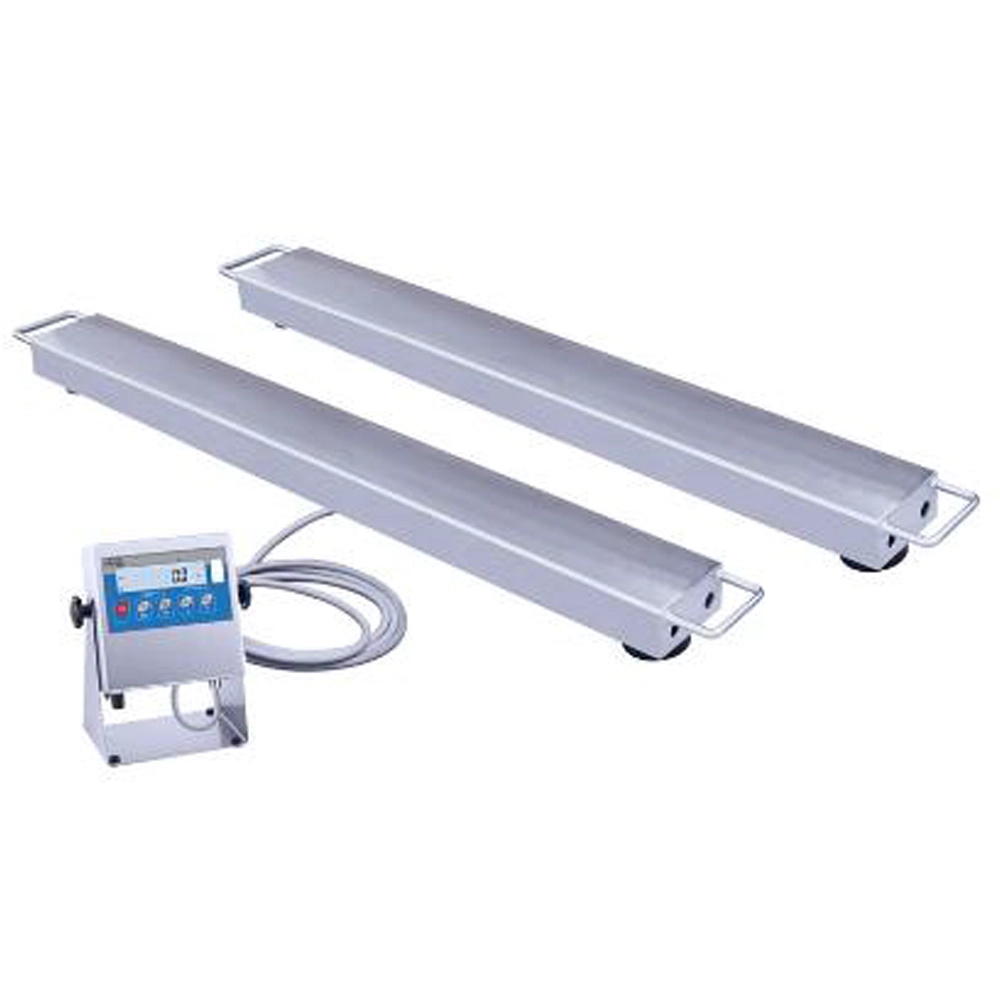

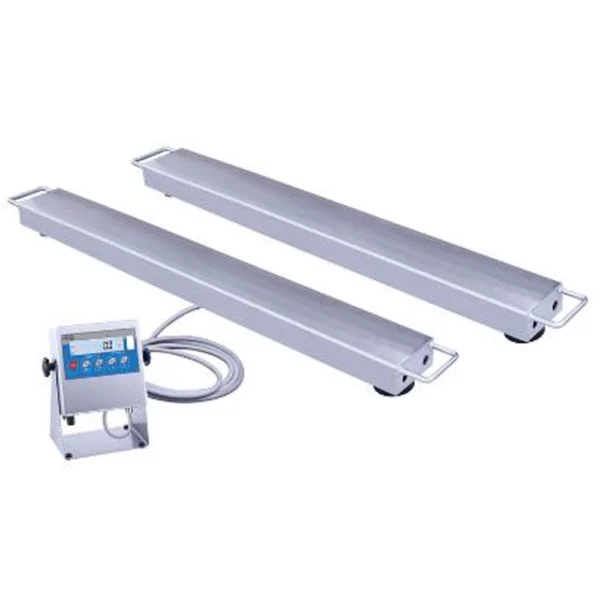

The WPT/4P2/H series scales are made of stainless steel.
Accessories not found
Data Sheets
User Manuals
Please login to download
Models
Description | Dimensions | Capacity | Division | E | Dimensioni Piatto |
---|---|---|---|---|---|
C315.4P2.600.C | 600 Kg | 200 g | 200 g | 2 barre lunghezza 1 | |
C315.4P2.1500.C | 1500 Kg | 500 g | 500 g | 2 barre lunghezza 1 | |
C315.4P2.3000.C | 3000 Kg | 1000 g | 1000 g | 2 barre lunghezza 1 | |
C315.4P2.2000.C1 | 2000 Kg | 1000 g | 1000 g | 2 barre lunghezza 2 | |
C315.4P2.4000.C1 | 4000 Kg | 2000 g | 2000 g | 2 barre lunghezza 2 | |
C315.4P2.6000.C1 | 6000 Kg | 2000 g | 2000 g | 2 barre lunghezza 2 | |
C315.4P2.2000.C2 | 2000 Kg | 1000 g | 1000 g | 2 barre lunghezza 2 | |
C315.4P2.4000.C2 | 4000 Kg | 2000 g | 2000 g | 2 barre lunghezza 2 | |
C315.4P2.6000.C2 | 6000 Kg | 2000 g | 2000 g | 2 barre lunghezza 2 | |
WPT/4P2 600 H | 600 cm | 600 Kg | 200 g | 200 g | 2 barre lunghezza 1 |
WPT/4P2 1500 H | 1500 cm | 1500 Kg | 500 g | 500 g | 2 barre lunghezza 1 |
WPT/4P2 3000 H | 3000 cm | 3000 Kg | 1000 g | 1000 g | 2 barre lunghezza 1 |
WPT/4P2 2000 H1 | 2000 cm | 2000 Kg | 1000 g | 1000 g | 2 barre lunghezza 2 |
WPT/4P2 4000 H1 | 4000 cm | 4000 Kg | 2000 g | 2000 g | 2 barre lunghezza 2 |
WPT/4P2 6000 H1 | 6000 cm | 6000 Kg | 2000 g | 2000 g | 2 barre lunghezza 2 |
WPT/4P2 2000 H2 | 2000 | 2000 Kg | 1000 g | 1000 g | 2 barre lunghezza 2 |
WPT/4P2 4000 H2 | 4000 | 4000 Kg | 2000 g | 2000 g | 2 barre lunghezza 2 |
WPT/4P2 6000 H2 | 6000 | 6000 Kg | 2000 g | 2000 g | 2 barre lunghezza 2 |
