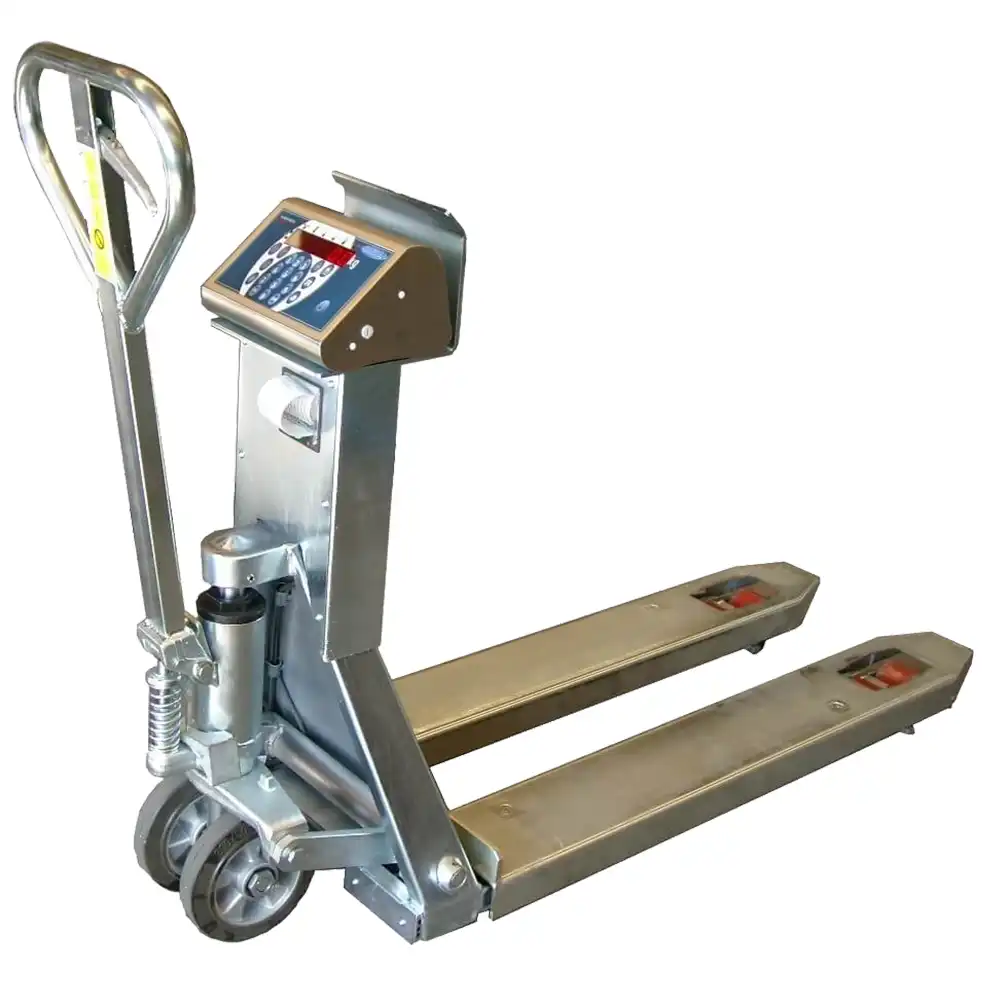

Atex weighingPallet truck
Capacity
600 - 1.500 - 3.000 Kg
Division
200/1000/2000 g
Features
• ATEX Certified Zone 1-21 and 2-22 pallet trucks with integrated weighing system
• Robust, thick sheet metal structure.
• Weight indicator in stainless steel container with protection IP65
• Red LED LCD weight display 20mm high
• Rubber wheels and polyurethane load wheels with a core of steel
• Fork dimensions: 1200x550x85mm
• Weight measurement by means of 4 stainless steel shear load cells, approved for up to 4000 divisions, IP69 protected and ATEX certified
• ATEX-certified junction box complete with junction box, con- nectors and with IP68 protection
• Total weight: 130kg approx.
• Rechargeable battery power supply with 12-hour runtime approx.
• Charging in a safe area
| Description | Code |
|---|---|
 Rechargeable battery box | OGE0B22X |
 220 Vac power supply | AAL220-2C3C |
 Analog current/voltage output | ASESW21-AN |
 Atex Declaration of Conformity for Platform - Indicator Assembly | CONFORMIT-ATEX |
Data Sheets
User Manuals
Please login to download
Models
| Description | Finish |
|---|---|
| Atex zone 1-21 | Painted |
| Atex zone 2-22 | Painted |
| Atex zone 1-21 | Steel |
| Atex zone 2-22 | Steel |
