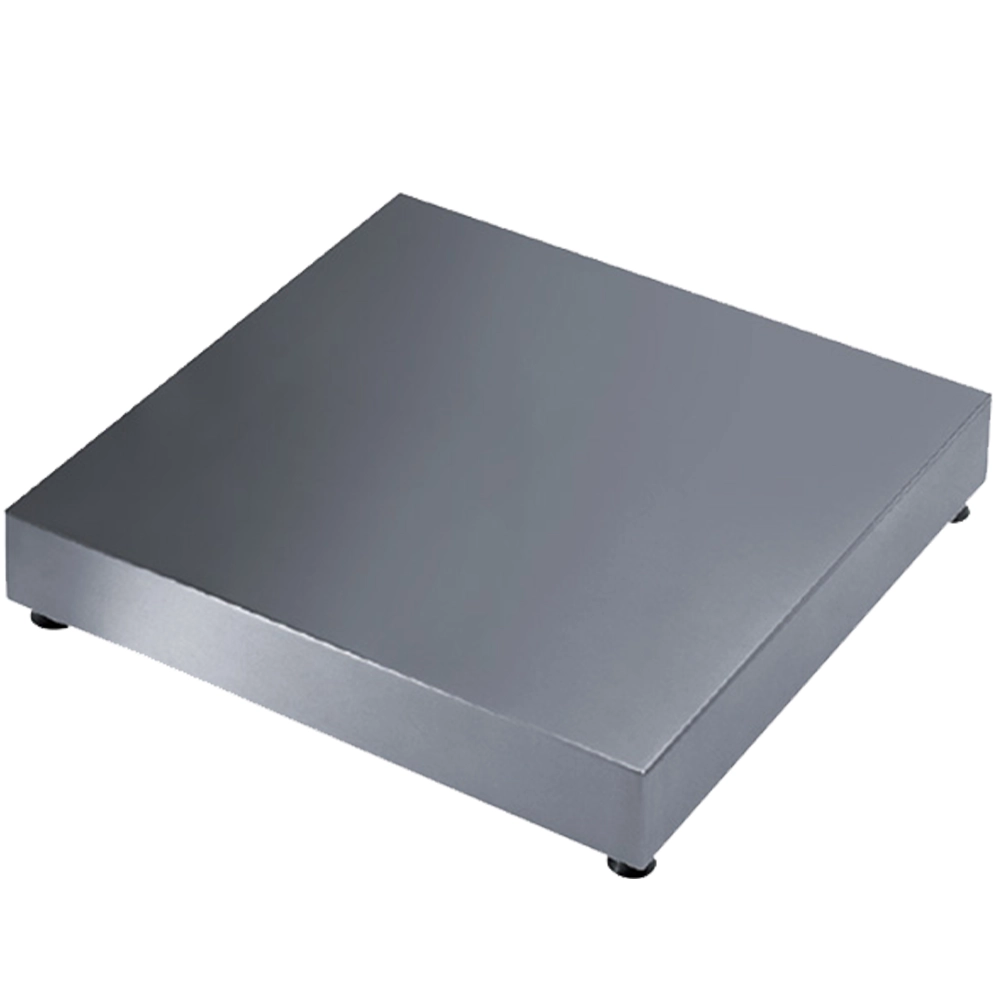

Piattaforme monocella tipo M

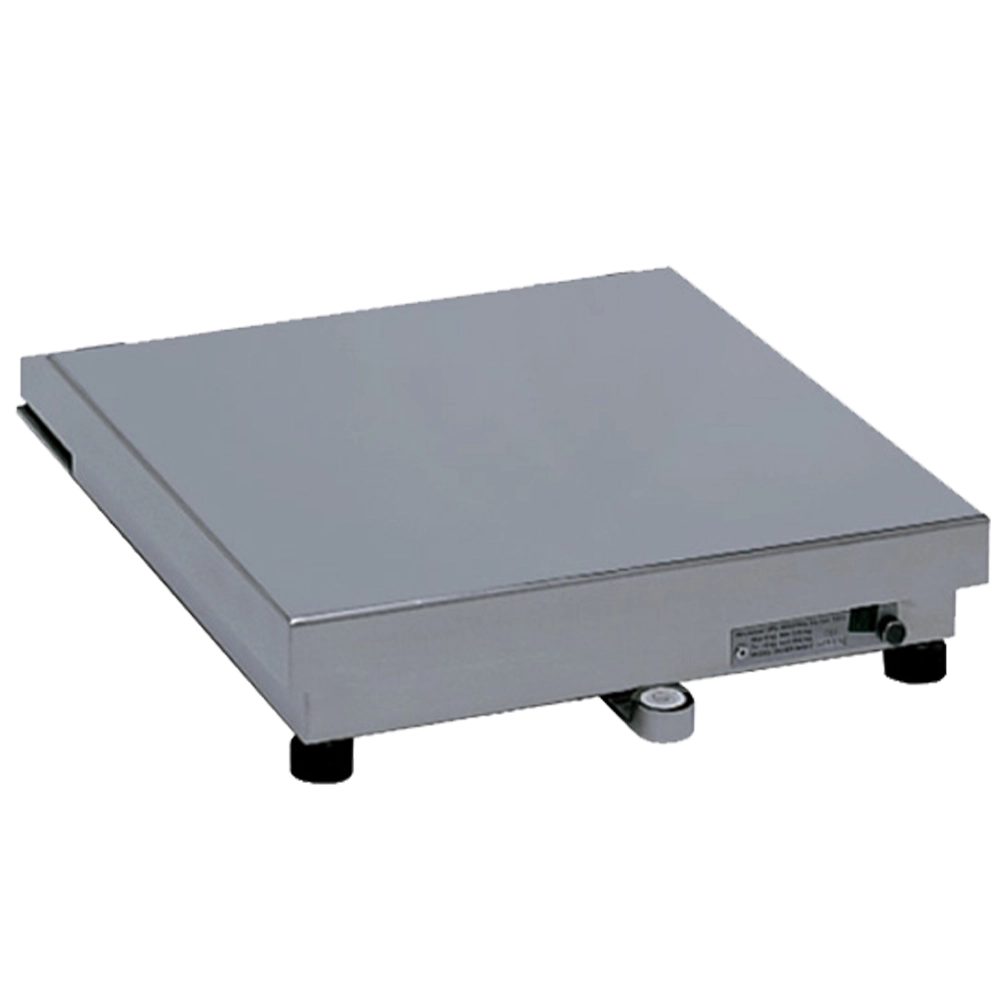

Piattaforme monocella tipo M - Image 2

M- ype single cell platforms

Privacy

Capacity

-

Division

-

Features

Main features:
- Single cell weighing platform in painted steel or AISI 304 stainless steel.
- Weight detection by a stainless steel “off centre” load cell with IP67 protection approved up to 4000 divisions (fully welded IP69 stainless steel load cell on request).
- Shielded 3m display connection cable.

Description Code
Piatti per piattaformePlate for platform API186108095
Spondine per piattaformeSide rail OM40SPD
Carrello per piattaformeTrolley OM40C2P
Rampa per piattaforma tipo MRamp for M- ype platform OSB0RMP-060X090
Colonna porta visoreDisplay stand AND186108057310
Modulo di connessioneConnection module OGE0-RF868

Data Sheets

User Manuals

Please login to download

Models

Description Dimensions Capacity Division 1° Range Finish Code
15 x 15 15 × 15 0.6 Kg 0.2 g Inox PM110K6
15 x 15 15 × 15 1.5 Kg 0.5 g Inox PM111K5
30 x 30 30 × 30 3 Kg 1 g 1 Kg - 0.5 g Inox PM31003
30 x 30 30 × 30 6 Kg 2 g 3 Kg - 1 g Inox PM31006
30 x 30 30 × 30 15 Kg 5 g 6 Kg - 2 g Inox PM31015
30 x 30 30 × 30 30 Kg 10 g 15 Kg - 5 g Inox PM31030
40 x 40 40 × 40 30 Kg 10 g 15 Kg - 5 g Painted PM43030
40 x 40 40 × 40 30 Kg 10 g 15 Kg - 5 g Inox PM48030
40 x 40 40 × 40 60 Kg 20 g 30 Kg - 10 g Painted PM43060
40 x 40 40 × 40 60 Kg 20 g 30 Kg - 10 g Inox PM48060
40 x 40 40 × 40 150 Kg 50 g 60 Kg - 20 g Painted PM43150
40 x 40 40 × 40 150 Kg 50 g 60 Kg - 20 g Inox PM48150
60 x 60 60 × 60 60 Kg 20 g 30 Kg - 10 g Painted PM63060
60 x 60 60 × 60 60 Kg 20 g 30 Kg - 10 g Inox PM68060
60 x 60 60 × 60 150 Kg 50 g 60 Kg - 20 g Painted PM63150
60 x 60 60 × 60 150 Kg 50 g 60 Kg - 20 g Inox PM68150
60 x 60 60 × 60 300 Kg 100 g 150 Kg - 50 g Painted PM63300
60 x 60 60 × 60 300 Kg 100 g 150 Kg - 50 g Inox PM68300
80 x 80 80 × 80 150 Kg 50 g 60 Kg - 20 g Painted PM83150
80 x 80 80 × 80 150 Kg 50 g 60 Kg - 20 g Inox PM88150
80 x 80 80 × 80 300 Kg 100 g 150 Kg - 50 g Painted PM83300
80 x 80 80 × 80 300 Kg 100 g 150 Kg - 50 g Inox PM88300
80 x 80 80 × 80 600 Kg 200 g 300 Kg - 100 g Painted PM83600
80 x 80 80 × 80 600 Kg 200 g 300 Kg - 100 g Inox PM88600
