Capacity
-
Division
-
Features

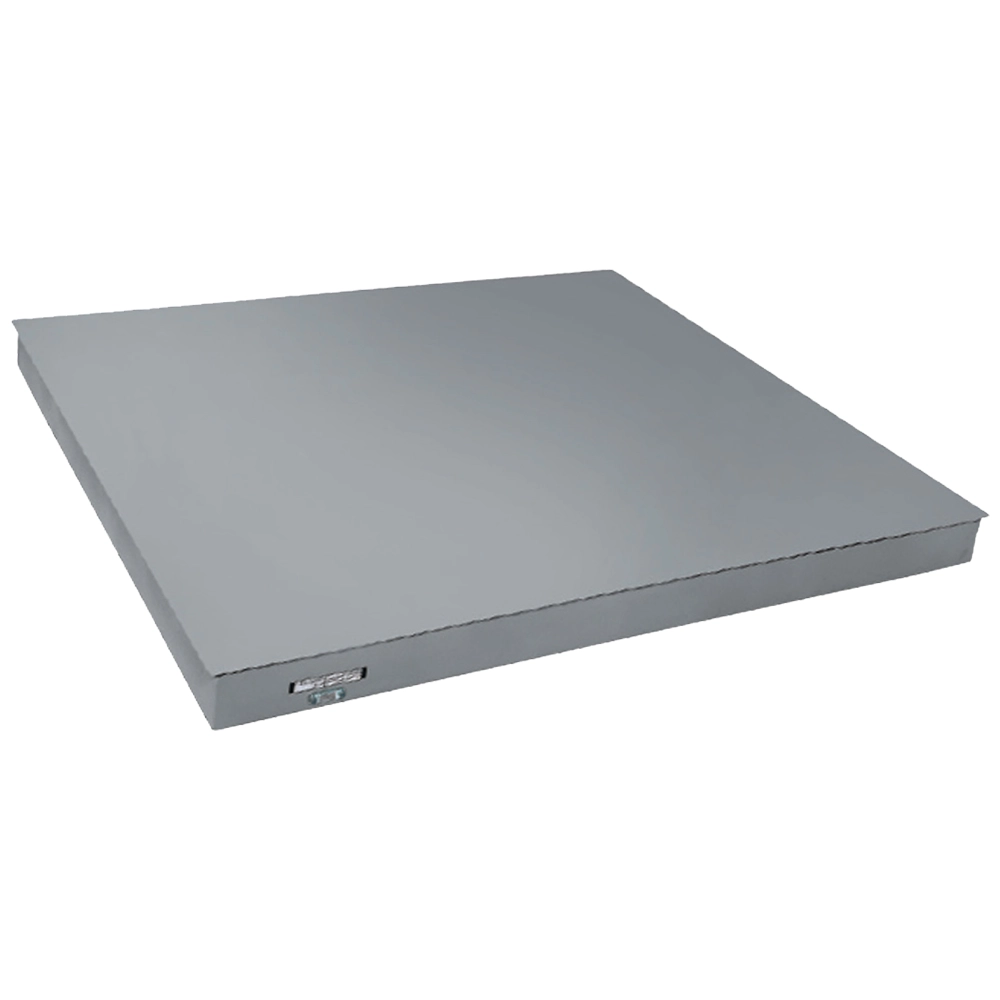

• Single-structure weighing platform in painted steel (with smooth plate) or stainless steel (with circle polished plate) for PVM/A floor installation or PVM/B above floor installation.
• Weight measurement by 4 stainless steel shear beam load cells, approved up to 4000 divisions and with IP67 protection (for the painted steel platform) or with IP69 protection (for the stainless steel platform).
• The cells rest on four ball supports supported by a special shock absorber to allow the platform to swing vertically and laterally.
• Shielded 5m display connection cable.
• Self-centring articulated feet for each load cell and spirit level.
• Junction box with card, connectors and IP68 protection.
• Frame for foundation pit with 4 support leg corners (optional)
Description | Code |
---|---|
![]() |
CAVALLETTO |
![]() |
ACB0498N080X080 |
![]() |
OMA0ZCT |
![]() |
OGE1COB |
Data Sheets
User Manuals
Please login to download
Models
Description | Dimensions | Capacity | Division | 1° Range | Finish | Code |
---|---|---|---|---|---|---|
Pvm/a/b type 4-cell Platforms, shockproof |
80 × 80 cm | 150 Kg | 50 g | 60 Kg - 20 g | Painted | PMA0150-080X080 |
Pvm/a/b type 4-cell Platforms, shockproof |
80 × 80 cm | 150 Kg | 50 g | 60 Kg - 20 g | Inox | PMA1150-080X080 |
Pvm/a/b type 4-cell Platforms, shockproof |
80 × 80 cm | 300 Kg | 100 g | 150 Kg - 50 g | Painted | PMA0300-080X080 |
Pvm/a/b type 4-cell Platforms, shockproof |
80 × 80 cm | 300 Kg | 100 g | 150 Kg - 50 g | Inox | PMA1300-080X080 |
Pvm/a/b type 4-cell Platforms, shockproof |
80 × 80 cm | 600 Kg | 200 g | 300 Kg - 100 g | Painted | PMA0600-080X080 |
Pvm/a/b type 4-cell Platforms, shockproof |
80 × 80 cm | 600 Kg | 200 g | 300 Kg - 100 g | Inox | PMA1600-080X080 |
Pvm/a/b type 4-cell Platforms, shockproof |
100 × 100 cm | 300 Kg | 100 g | 150 Kg - 50 g | Painted | PMA0300-100X100 |
Pvm/a/b type 4-cell Platforms, shockproof |
100 × 100 cm | 300 Kg | 100 g | 150 Kg - 50 g | Inox | PMA1300-100X100 |
Pvm/a/b type 4-cell Platforms, shockproof |
100 × 100 cm | 600 Kg | 200 g | 300 Kg - 100 g | Painted | PMA0600-100X100 |
Pvm/a/b type 4-cell Platforms, shockproof |
100 × 100 cm | 600 Kg | 200 g | 300 Kg - 100 g | Inox | PMA1600-100X100 |
Pvm/a/b type 4-cell Platforms, shockproof |
100 × 100 cm | 1500 Kg | 500 g | 600 Kg - 200 g | Painted | PMA01T5-100X100 |
Pvm/a/b type 4-cell Platforms, shockproof |
100 × 100 cm | 1500 Kg | 500 g | 600 Kg - 200 g | Inox | PMA11T5-100X100 |
Pvm/a/b type 4-cell Platforms, shockproof |
100 × 125 cm | 600 Kg | 200 g | 300 Kg - 100 g | Painted | PMA0600-100X125 |
Pvm/a/b type 4-cell Platforms, shockproof |
100 × 125 cm | 600 Kg | 200 g | 300 Kg - 100 g | Inox | PMA1600-100X125 |
Pvm/a/b type 4-cell Platforms, shockproof |
100 × 125 cm | 1500 Kg | 500 g | 600 Kg - 200 g | Painted | PMA01T5-100X125 |
Pvm/a/b type 4-cell Platforms, shockproof |
100 × 125 cm | 1500 Kg | 500 g | 600 Kg - 200 g | Inox | PMA11T5-100X125 |
Pvm/a/b type 4-cell Platforms, shockproof |
100 × 125 cm | 3000 Kg | 1000 g | 1500 Kg - 500 g | Painted | PMA03T0-100X125 |
Pvm/a/b type 4-cell Platforms, shockproof |
100 × 125 cm | 3000 Kg | 1000 g | 1500 Kg - 500 g | Inox | PMA13T0-100X125 |
Pvm/a/b type 4-cell Platforms, shockproof |
125 × 125 cm | 600 Kg | 200 g | 300 Kg - 100 g | Painted | PMA0600-125X125 |
Pvm/a/b type 4-cell Platforms, shockproof |
125 × 125 cm | 600 Kg | 200 g | 300 Kg - 100 g | Inox | PMA1600-125X125 |
Pvm/a/b type 4-cell Platforms, shockproof |
125 × 125 cm | 1500 Kg | 500 g | 600 Kg - 200 g | Painted | PMA01T5-125X125 |
Pvm/a/b type 4-cell Platforms, shockproof |
125 × 125 cm | 1500 Kg | 500 g | 600 Kg - 200 g | Inox | PMA11T5-125X125 |
Pvm/a/b type 4-cell Platforms, shockproof |
125 × 125 cm | 3000 Kg | 1000 g | 1500 Kg - 500 g | Painted | PMA03T0-125X125 |
Pvm/a/b type 4-cell Platforms, shockproof |
125 × 125 cm | 3000 Kg | 1000 g | 1500 Kg - 500 g | Inox | PMA13T0-125X125 |
Pvm/a/b type 4-cell Platforms, shockproof |
125 × 150 cm | 600 Kg | 200 g | 300 Kg - 100 g | Painted | PMA0600-125X150 |
Pvm/a/b type 4-cell Platforms, shockproof |
125 × 150 cm | 600 Kg | 200 g | 300 Kg - 100 g | Inox | PMA1600-125X150 |
Pvm/a/b type 4-cell Platforms, shockproof |
125 × 150 cm | 1500 Kg | 500 g | 600 Kg - 200 g | Painted | PMA01T5-125X150 |
Pvm/a/b type 4-cell Platforms, shockproof |
125 × 150 cm | 1500 Kg | 500 g | 600 Kg - 200 g | Inox | PMA11T5-125X150 |
Pvm/a/b type 4-cell Platforms, shockproof |
125 × 150 cm | 3000 Kg | 1000 g | 1500 Kg - 500 g | Painted | PMA03T0-125X150 |
Pvm/a/b type 4-cell Platforms, shockproof |
125 × 150 cm | 3000 Kg | 1000 g | 1500 Kg - 500 g | Inox | PMA13T0-125X150 |
Pvm/a/b type 4-cell Platforms, shockproof |
125 × 150 cm | 6000 Kg | 2000 g | 3000 Kg - 1000 g | Painted | PMA06T0-125X150 |
Pvm/a/b type 4-cell Platforms, shockproof |
125 × 150 cm | 6000 Kg | 2000 g | 3000 Kg - 1000 g | Inox | PMA16T0-125X150 |
Pvm/a/b type 4-cell Platforms, shockproof |
125 × 200 cm | 600 Kg | 200 g | 300 Kg - 100 g | Painted | PMA0600-125X200 |
Pvm/a/b type 4-cell Platforms, shockproof |
125 × 200 cm | 600 Kg | 200 g | 300 Kg - 100 g | Inox | PMA1600-125X200 |
Pvm/a/b type 4-cell Platforms, shockproof |
125 × 200 cm | 1500 Kg | 500 g | 600 Kg - 200 g | Painted | PMA01T5-125X200 |
Pvm/a/b type 4-cell Platforms, shockproof |
125 × 200 cm | 1500 Kg | 500 g | 600 Kg - 200 g | Inox | PMA11T5-125X200 |
Pvm/a/b type 4-cell Platforms, shockproof |
125 × 200 cm | 3000 Kg | 1000 g | 1500 Kg - 500 g | Painted | PMA03T0-125X200 |
Pvm/a/b type 4-cell Platforms, shockproof |
125 × 200 cm | 3000 Kg | 1000 g | 1500 Kg - 500 g | Inox | PMA13T0-125X200 |
Pvm/a/b type 4-cell Platforms, shockproof |
125 × 200 cm | 6000 Kg | 2000 g | 3000 Kg - 1000 g | Painted | PMA06T0-125X200 |
Pvm/a/b type 4-cell Platforms, shockproof |
125 × 200 cm | 6000 Kg | 2000 g | 3000 Kg - 1000 g | Inox | PMA16T0-125X200 |
Pvm/a/b type 4-cell Platforms, shockproof |
150 × 150 cm | 600 Kg | 200 g | 300 Kg - 100 g | Painted | PMA0600-150X150 |
Pvm/a/b type 4-cell Platforms, shockproof |
150 × 150 cm | 600 Kg | 200 g | 300 Kg - 100 g | Inox | PMA1600-150X150 |
Pvm/a/b type 4-cell Platforms, shockproof |
150 × 150 cm | 1500 Kg | 500 g | 600 Kg - 200 g | Painted | PMA01T5-150X150 |
Pvm/a/b type 4-cell Platforms, shockproof |
150 × 150 cm | 1500 Kg | 500 g | 600 Kg - 200 g | Inox | PMA11T5-150X150 |
Pvm/a/b type 4-cell Platforms, shockproof |
150 × 150 cm | 3000 Kg | 1000 g | 1500 Kg - 500 g | Painted | PMA03T0-150X150 |
Pvm/a/b type 4-cell Platforms, shockproof |
150 × 150 cm | 3000 Kg | 1000 g | 1500 Kg - 500 g | Inox | PMA13T0-150X150 |
Pvm/a/b type 4-cell Platforms, shockproof |
150 × 150 cm | 6000 Kg | 2000 g | 3000 Kg - 1000 g | Painted | PMA06T0-150X150 |
Pvm/a/b type 4-cell Platforms, shockproof |
150 × 150 cm | 6000 Kg | 2000 g | 3000 Kg - 1000 g | Inox | PMA16T0-150X150 |
Pvm/a/b type 4-cell Platforms, shockproof |
150 × 200 cm | 600 Kg | 200 g | 300 Kg - 100 g | Painted | PMA0600-150X200 |
Pvm/a/b type 4-cell Platforms, shockproof |
150 × 200 cm | 600 Kg | 200 g | 300 Kg - 100 g | Inox | PMA1600-150X200 |
Pvm/a/b type 4-cell Platforms, shockproof |
150 × 200 cm | 1500 Kg | 500 g | 600 Kg - 200 g | Painted | PMA01T5-150X200 |
Pvm/a/b type 4-cell Platforms, shockproof |
150 × 200 cm | 1500 Kg | 500 g | 600 Kg - 200 g | Inox | PMA11T5-150X200 |
Pvm/a/b type 4-cell Platforms, shockproof |
150 × 200 cm | 3000 Kg | 1000 g | 1500 Kg - 500 g | Painted | PMA03T0-150X200 |
Pvm/a/b type 4-cell Platforms, shockproof |
150 × 200 cm | 3000 Kg | 1000 g | 1500 Kg - 500 g | Inox | PMA13T0-150X200 |
Pvm/a/b type 4-cell Platforms, shockproof |
150 × 200 cm | 6000 Kg | 2000 g | 3000 Kg - 1000 g | Painted | PMA06T0-150X200 |
Pvm/a/b type 4-cell Platforms, shockproof |
150 × 200 cm | 6000 Kg | 2000 g | 3000 Kg - 1000 g | Inox | PMA16T0-150X200 |
Pvm/a/b type 4-cell Platforms, shockproof |
150 × 250 cm | 1500 Kg | 500 g | 600 Kg - 200 g | Painted | PMA01T5-150X250 |
Pvm/a/b type 4-cell Platforms, shockproof |
150 × 250 cm | 1500 Kg | 500 g | 600 Kg - 200 g | Inox | PMA11T5-150X250 |
Pvm/a/b type 4-cell Platforms, shockproof |
150 × 250 cm | 3000 Kg | 1000 g | 1500 Kg - 500 g | Painted | PMA03T0-150X250 |
Pvm/a/b type 4-cell Platforms, shockproof |
150 × 250 cm | 3000 Kg | 1000 g | 1500 Kg - 500 g | Inox | PMA13T0-150X250 |
Pvm/a/b type 4-cell Platforms, shockproof |
150 × 250 cm | 6000 Kg | 2000 g | 3000 Kg - 1000 g | Painted | PMA06T0-150X250 |
Pvm/a/b type 4-cell Platforms, shockproof |
150 × 250 cm | 6000 Kg | 2000 g | 3000 Kg - 1000 g | Inox | PMA16T0-150X250 |
