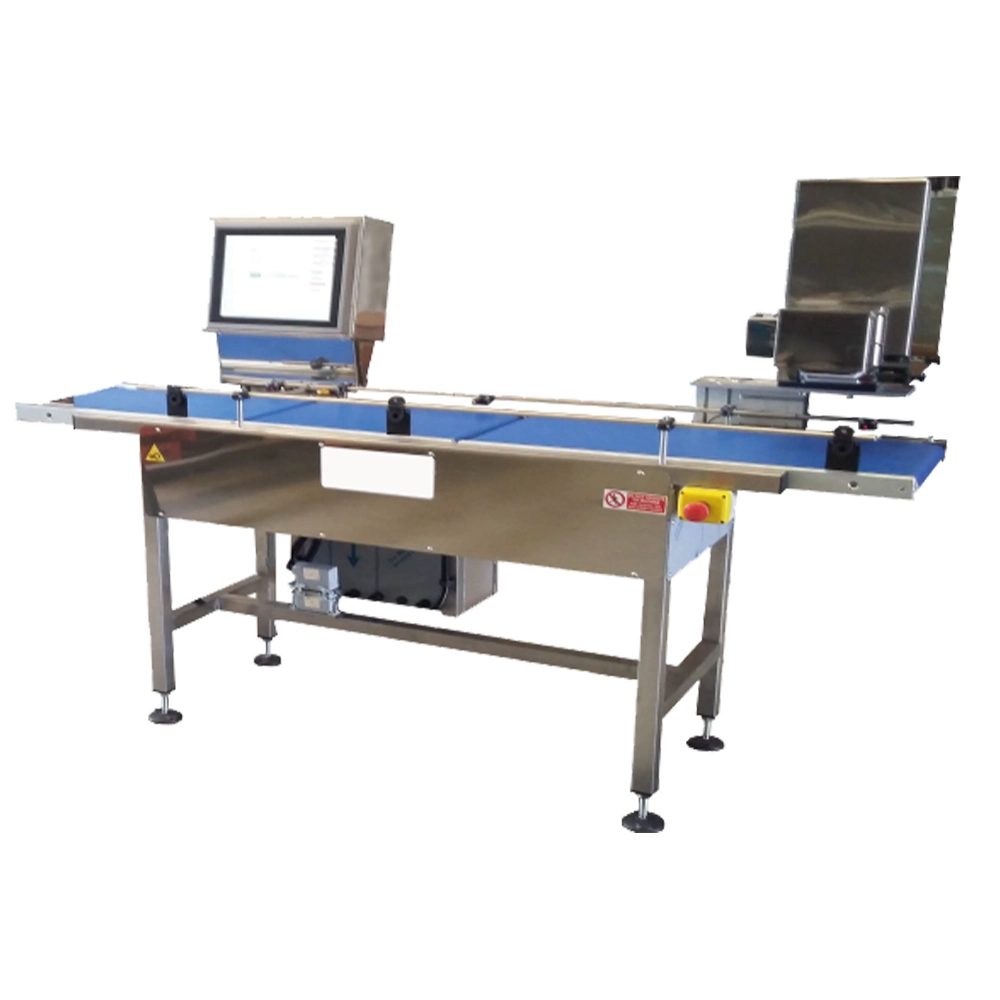

Weighing and pricing machine

depending on version
• Application area
- Pack sizes
From mm (40x40x3) to mm (600x400x300)
Applications with larger pack sizes will be checked by our Technical Service Department
- Label dimensions
From mm (20x20) to mm (110x100)
- Operating speed
Approx. up to 200 pcs/min.
- Max. capacity 1.5 - 3 - 6- 12 - 30 Kg Division 1 – 2 - 5 g
- 3” or 4” print head
200 dpi resolution, Air Jet high speed applicator, compensated pneumatic cylinder, arm
- Viewer
15” Touch Panel
- Software for easy creation of label layout and product management from panel.
• Power supply
Electric
- Voltage 230 Vac ±5% single-phase 50/60Hz Power max 250 VA Current max 1.0 A Industrial socket compliant with IEC 309-2
Pneumatic (only with gun or cylinder application)
Aria compressa a pressione 6 bar (tubo in entrata da 10 mm) L’aria compressa deve essere filtrata e deumidificata
• Dimensions
Length 700 - 2400 mm Width 800 mm Height Max. 1600 mm
• Connections
Ethernet, USB, VPN (remote assistance)
• Materials
AISI 304 and stainless materials
• Certification
Machines complying with 2014/32/EU - MID All 6 Classes Y(a) – XIII(1)
