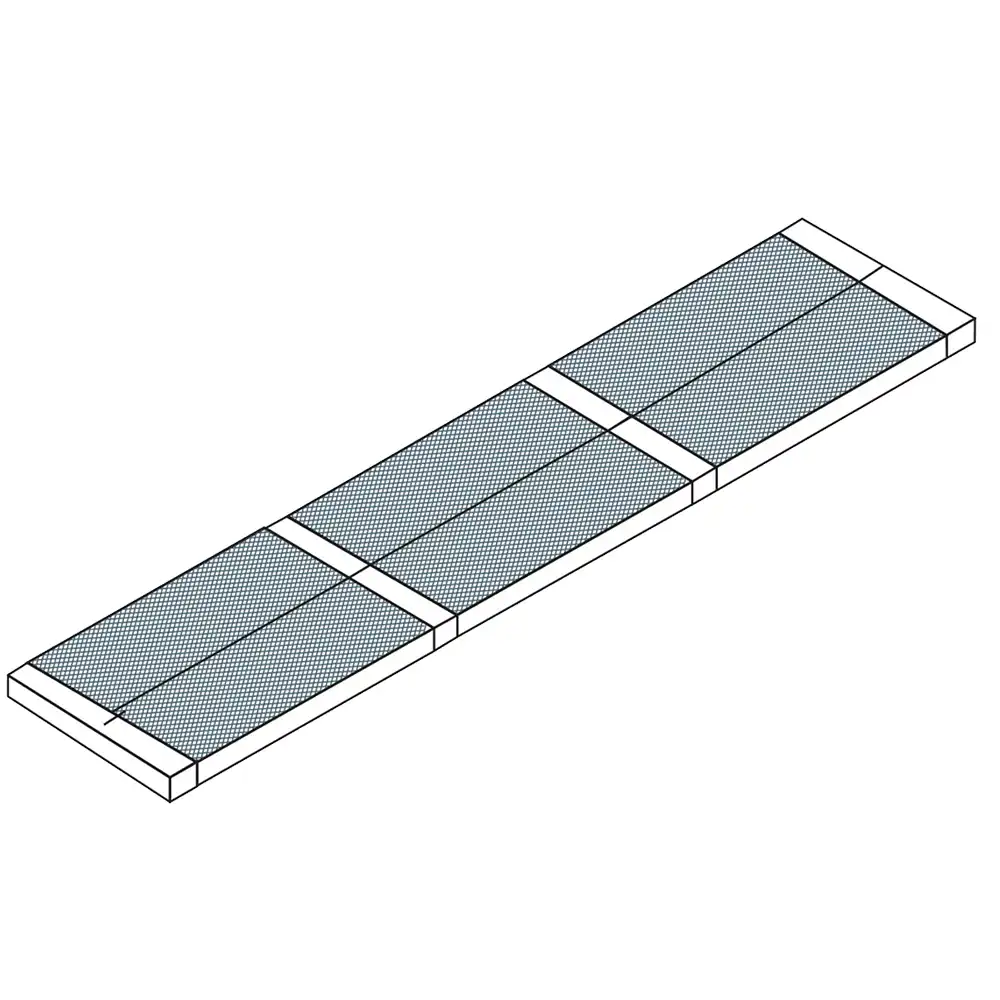

SP/D type weighbridges and PE axle weighers to be buried flush with the floor or above ground
Capacity
-
Division
-
Features
Main features of SP/D weighbridges
• Traditional weighbridges made of painted steel and consisting of embossed sheet metal modules.
• The metal structure has a height of approx. 375 mm and requires a pit of approx. 495 mm (in the flush floor version).
• Weight measurement using digital compression load cells, approved up to 4000 divisions and with IP68 protection.
• 15m shielded connection cable to the display.
• Digital junction box complete with board, connectors and with IP68 protection.
• The standard version includes the model Iscale visor with model TM295 tag printer.
• Foundation pit frame for the version to be buried flush with the floor (optional).
• Special sizes and capacities by quotation
Accessories not found
Data Sheets
User Manuals
Please login to download
Models
| Description | Dimensions | Capacity | Division | Code |
|---|---|---|---|---|
| to be buried flush with the floor or above ground – 4 cells |
4 × 3 m | 40 Ton | 10 kg | PTD040T-4X3 |
| to be buried flush with the floor or above ground – 4 cells |
6 × 3 m | 40 Ton | 10 kg | PTD040T-6X3 |
| to be buried flush with the floor or above ground – 6 cells |
8 × 3 m | 60 Ton | 20 kg | PTD080T-8X3 |
| to be buried flush with the floor or above ground – 6 cells |
10 × 3 m | 60 Ton | 20 kg | PTD080T-10X3 |
| to be buried flush with the floor or above ground – 6 cells |
12 × 3 m | 60 Ton | 20 kg | PTD080T-12X3 |
| to be buried flush with the floor or above ground – 8 cells |
14 × 3 m | 60 Ton | 20 kg | PTD080T-14X3 |
| to be buried flush with the floor or above ground – 8 cells |
16 × 3 m | 60 Ton | 20 kg | PTD080T-16X3 |
| to be buried flush with the floor or above ground – 8 cells |
18 × 3 m | 60 Ton | 20 kg | PTD080T-18X3 |
