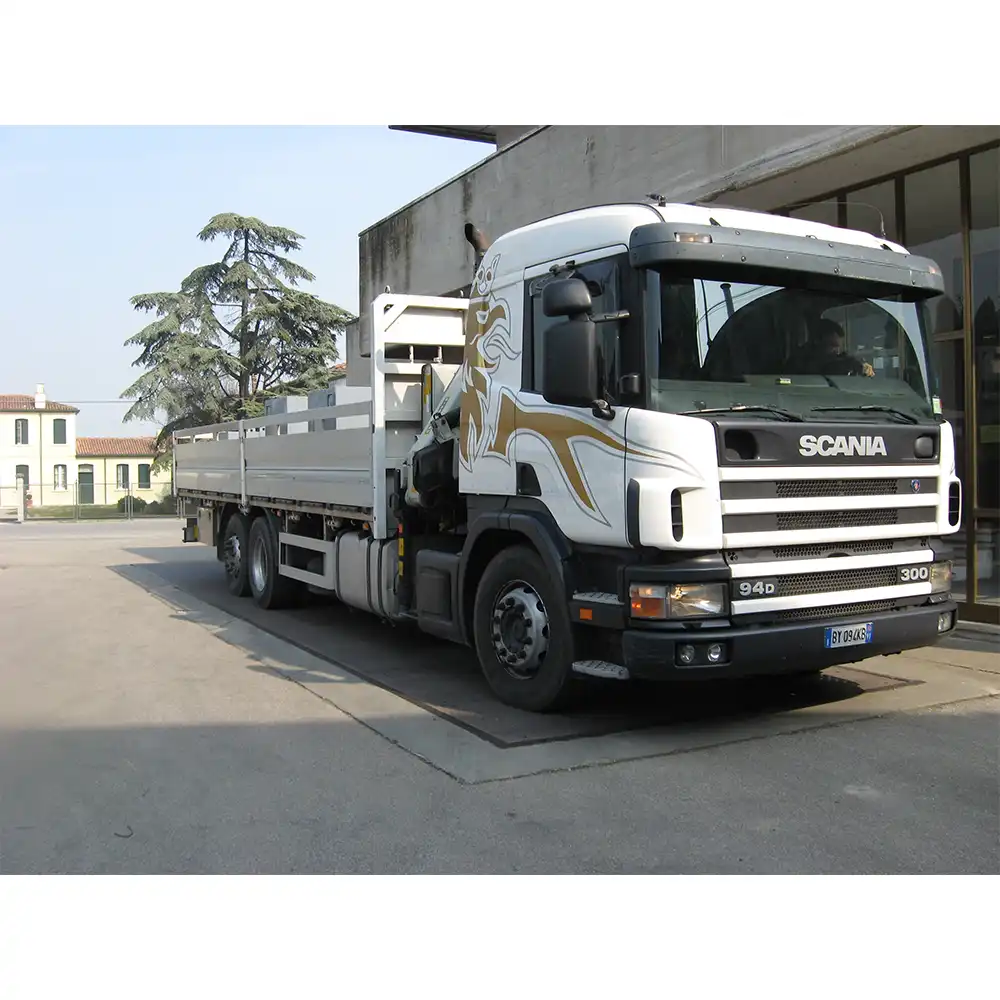

Type SP/A bridge weighing machines to be buried flush with the flooror above ground
Capacity
-
Division
-
Features

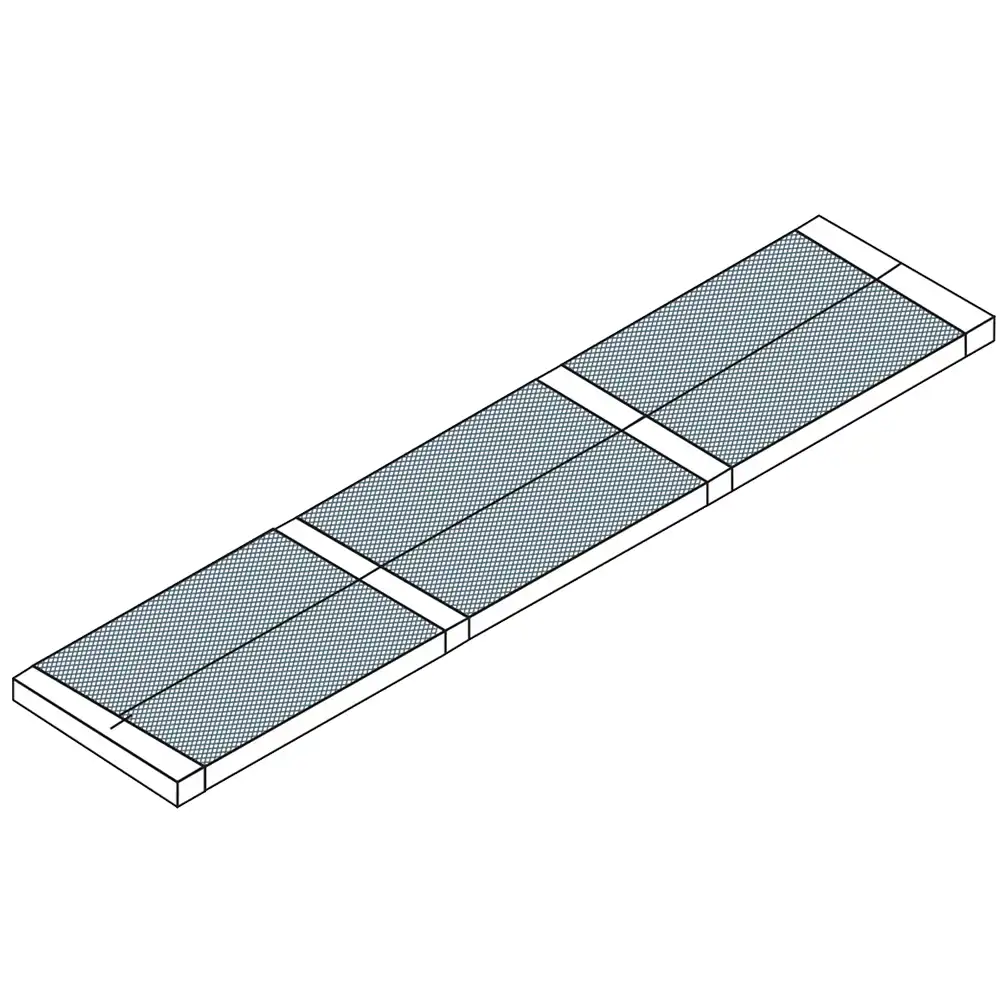

• Traditional weighbridges made of painted steel and consisting of embossed sheet metal modules.
• The metal structure has a height of approx. 375 mm and requires a pit of approx. 495 mm (in the flush floor version).
• Weight measurement using analogue pressure load cells, approved up to 4000 divisions and with IP68 protection.
• 15m shielded connection cable to the display.
• Junction box complete with board, connectors and IP68 protection.
• The standard version includes the model Iscale visor with model TM295 tag printer.
• Foundation pit frame for the version to be buried flush with the floor (optional).
• Special sizes and capacities by quotation
Accessories not found
Data Sheets
User Manuals
Please login to download
Models
| Description | Dimensions | Capacity | Division | 1° Range | Code |
|---|---|---|---|---|---|
| to be buried flush with the floor or above ground – 4 cells | 4 × 3 m | 40 Ton | 10 Kg | 15 Ton - 5 Kg | PTS040T-4X3 |
| to be buried flush with the floor or above ground – 4 cells | 6 × 3 m | 40 Ton | 10 Kg | 15 Ton - 5 Kg | PTS040T-6X3 |
| to be buried flush with the floor or above ground – 6 cells | 8 × 3 m | 60 Ton | 20 kg | 30 Ton - 10 Kg | PTS080T-8X3 |
| to be buried flush with the floor or above ground – 6 cells | 10 × 3 m | 60 Ton | 20 kg | 30 Ton - 10 Kg | PTS080T-10X3 |
| to be buried flush with the floor or above ground – 6 cells | 12 × 3 m | 60 Ton | 20 kg | 30 Ton - 10 Kg | PTS080T-12X3 |
| to be buried flush with the floor or above ground – 8 cells | 14 × 3 m | 60 Ton | 20 kg | 30 Ton - 10 Kg | PTS080T-14X3 |
| to be buried flush with the floor or above ground – 8 cells | 16 × 3 m | 60 Ton | 20 kg | 30 Ton - 10 Kg | PTS080T-16X3 |
| to be buried flush with the floor or above ground – 8 cells | 18 × 3 m | 60 Ton | 20 kg | 30 Ton - 10 Kg | PTS080T-18X3 |
