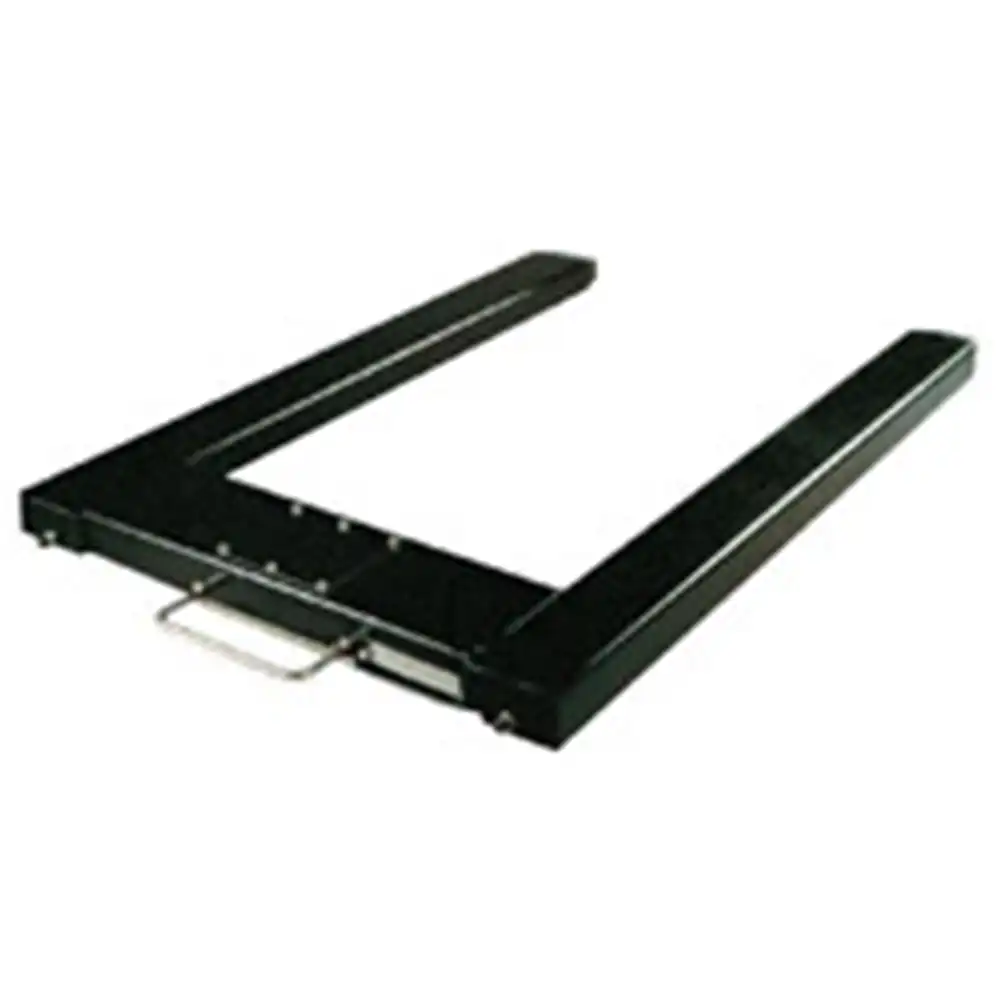

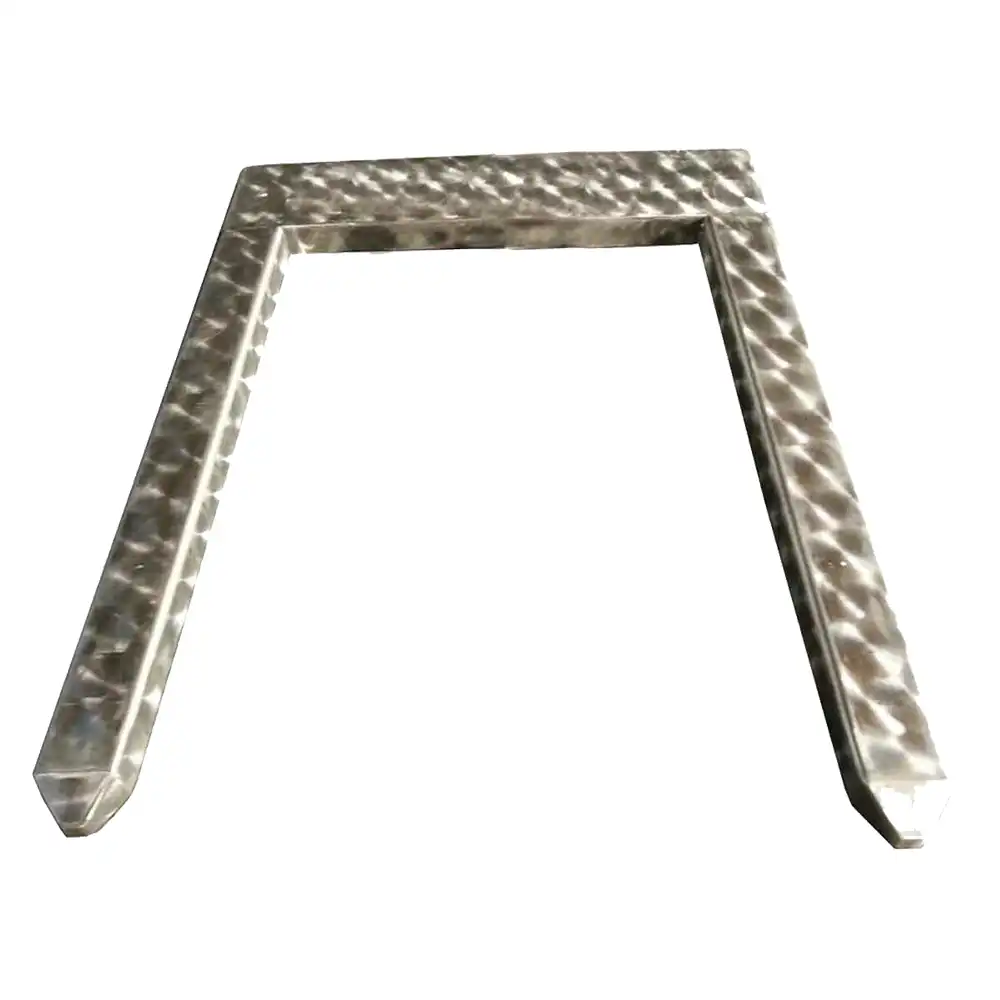

TP pallet weighing
Capacity
-
Division
-
Features
• One-piece mobile weighing platform in painted steel or stainless steel
• for above-floor installation and for weighing pallets with a hand pallet truck.
• External dimensions 125cm x 84cm x 90cm height.
• Equipped with special handles and wheels for easy handling within the warehouse.
• Weight detection by means of 4 shear load cells, homologate up to 4000 divisions and with IP67 protection (for painted steel platform) or with IP69 protection (for stainless steel platform).
• 5m shielded connection cable to the display.
• Self-centring articulated feet for each load cell and bubble of spirit level.
• Junction box complete with board, connectors and with IP68 protection.
Accessories not found
Data Sheets
User Manuals
Please login to download
Models
| Description | Capacity | Division | 1° Range | Finish | Code |
|---|---|---|---|---|---|
| TP pallet weighing | 600 Kg | 200 g | 300 Kg - 100 g | Painted | STP0600 |
| TP pallet weighing | 600 Kg | 200 g | 300 Kg - 100 g | Inox | STP1600 |
| TP pallet weighing | 1500 Kg | 500 g | 600 Kg - 200 g | Painted | STP01T5 |
| TP pallet weighing | 1500 Kg | 500 g | 600 Kg - 200 g | Inox | STP11T5 |
| TP pallet weighing | 3000 Kg | 1000 g | 1500 Kg - 500 g | Painted | STP03T0 |
| TP pallet weighing | 3000 Kg | 1000 g | 1500 Kg - 500 g | Inox | STP13T0 |
