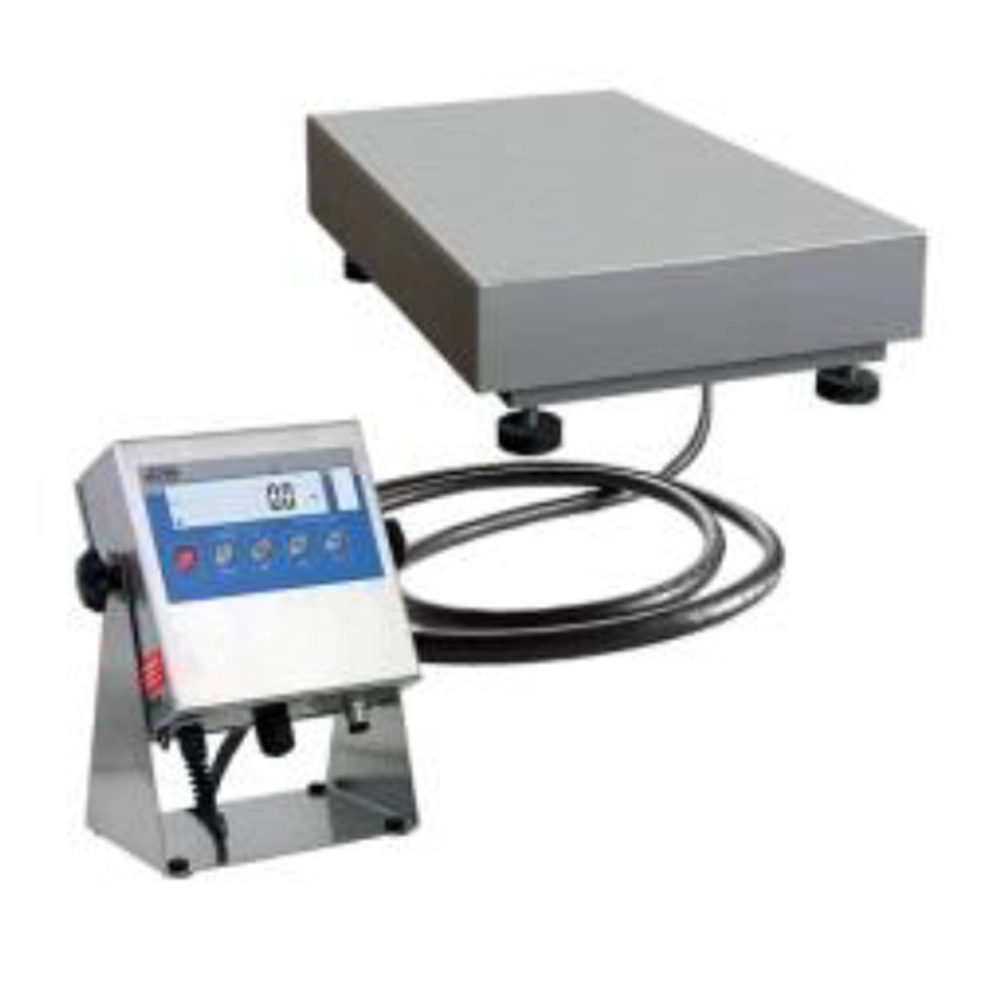

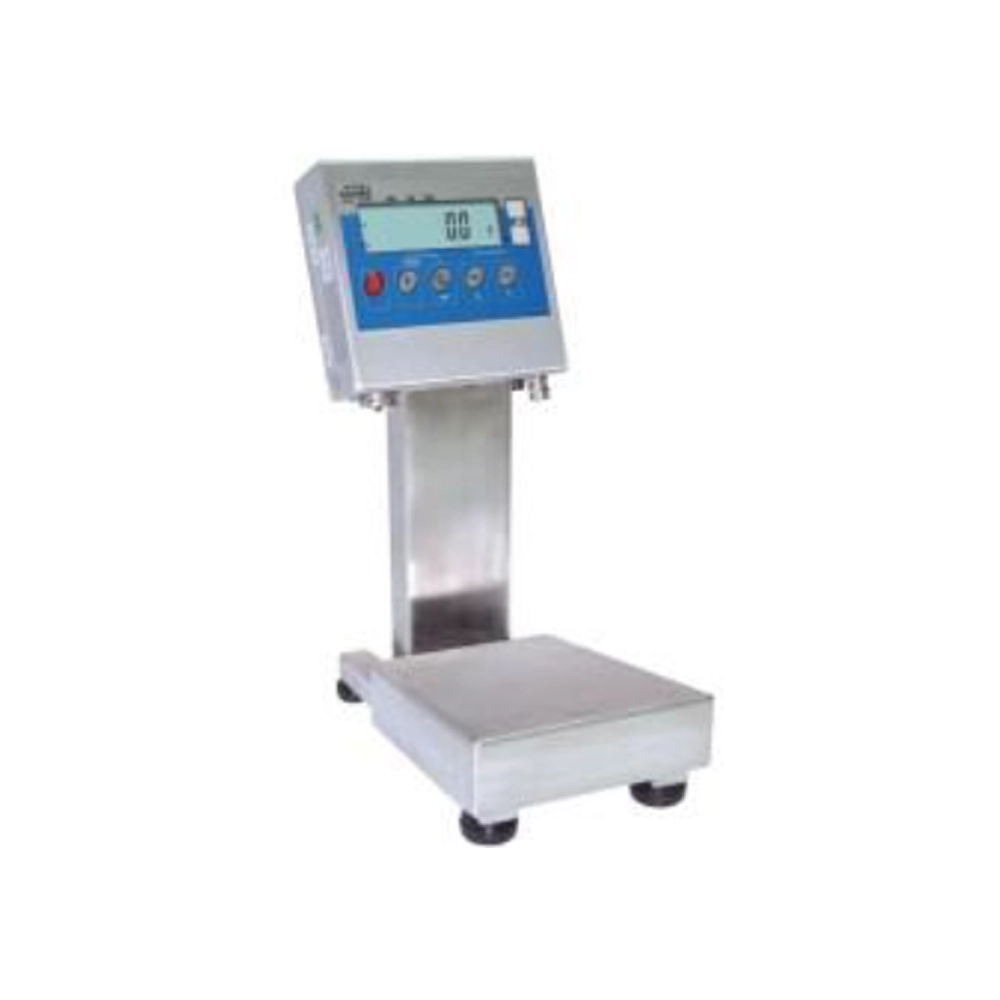

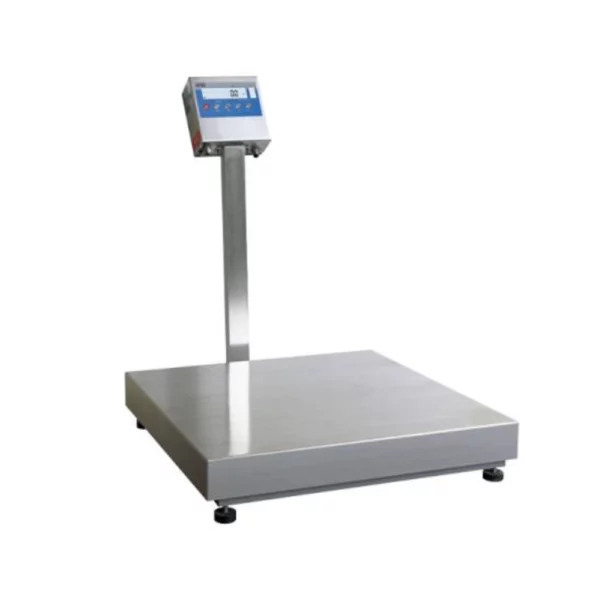

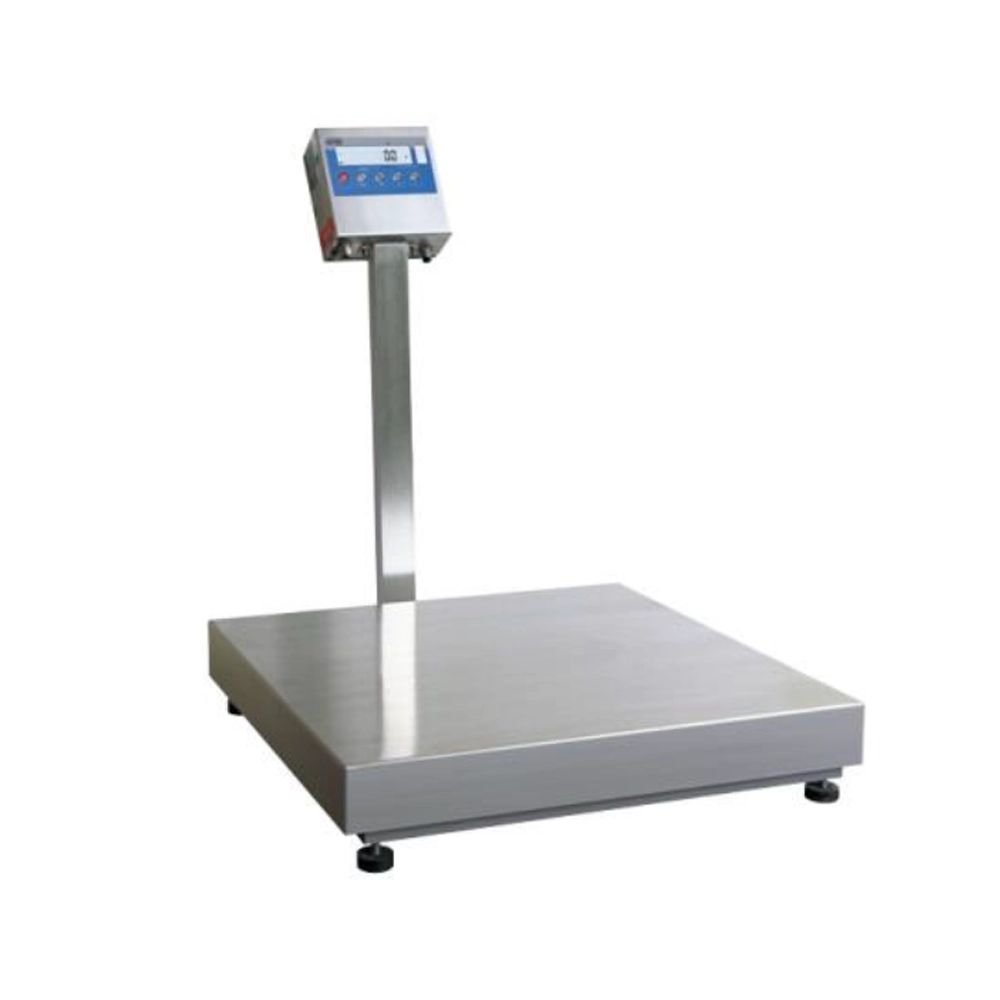

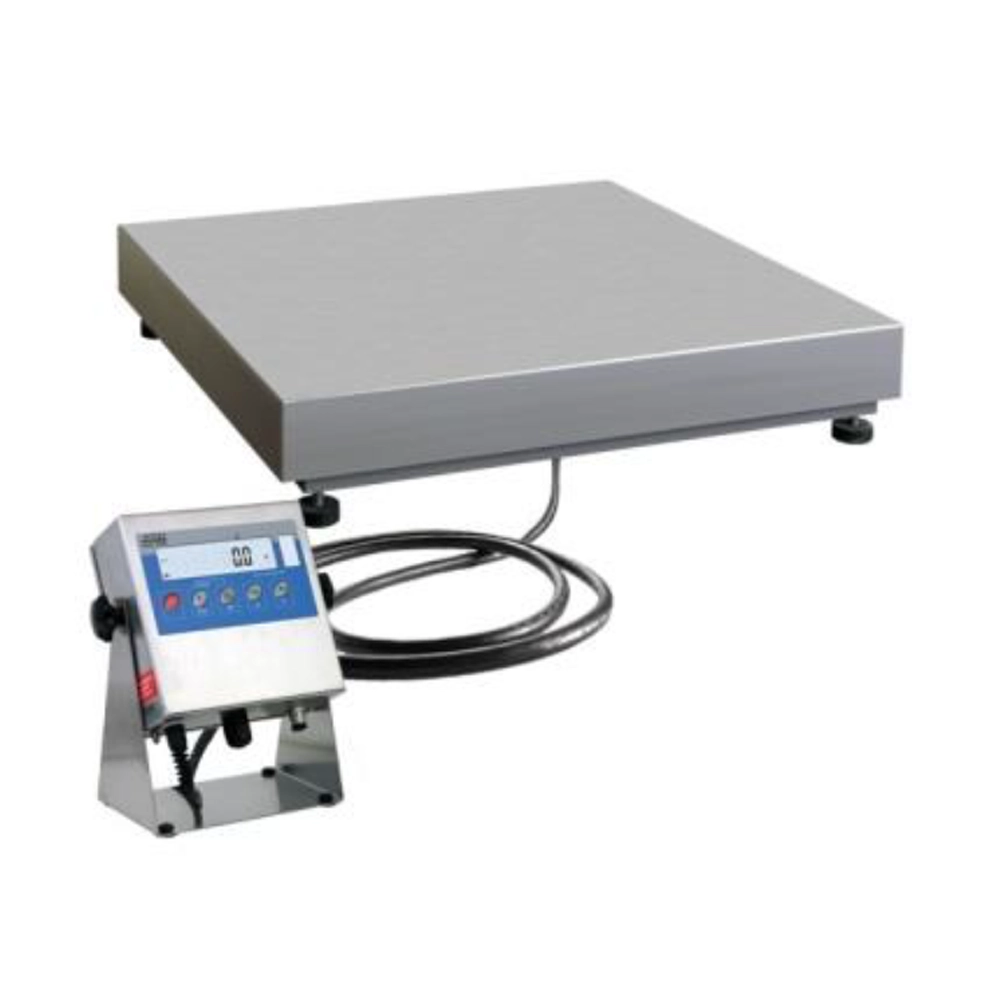

WPT H scales are designed with 100% water protection for the load cell. This solution protects the load cell from external agents. All platform elements are made of stainless steel. The PUE C/31H weight indicator is installed on a column or left with 3 meters of loose cable (/K). Internal IP protection: IP 67 for the platform, IP 66/67 for the indicator.
Accessories not found
Data Sheets
User Manuals
Please login to download
Models
| Description | Capacity | Division | E | Dimensioni Piatto |
|---|---|---|---|---|
| WPT 3H1/K | 3 Kg | 1 g | 1 g | 200 x 150 mm |
| WPT 6H2/K | 6 Kg | 2 g | 2 g | 250 x 300 mm |
| WPT 15H2/K | 15 Kg | 5 g | 5 g | 250 x 300 mm |
| WPT 15H3/K | 15 Kg | 5 g | 5 g | 410 x 410 mm |
| WPT 30H3/K | 30 Kg | 10 g | 10 g | 410 x 410 mm |
| WPT 60H3/K | 60 Kg | 20 g | 20 g | 410 x 410 mm |
| WPT 150H3/K | 150 Kg | 50 g | 50 g | 410 x 410 mm |
| WPT 60H4/K | 60 Kg | 20 g | 20 g | 500 x 500 mm |
| WPT 150H4/K | 150 Kg | 50 g | 50 g | 500 x 500 mm |
| WPT 60H5/K | 60 Kg | 20 g | 20 g | 600 x 600 mm |
| WPT 150H5/K | 150 Kg | 50 g | 50 g | 600 x 600 mm |
| WPT 300H5/K | 300 Kg | 100 g | 100 g | 600 x 600 mm |
| WPT 150H6/K | 150 Kg | 50 g | 50 g | 800 x 800 mm |
| WPT 300H6/K | 300 Kg | 100 g | 100 g | 800 x 800 mm |
