WIN 3
Capacity
-
Division
-
Features

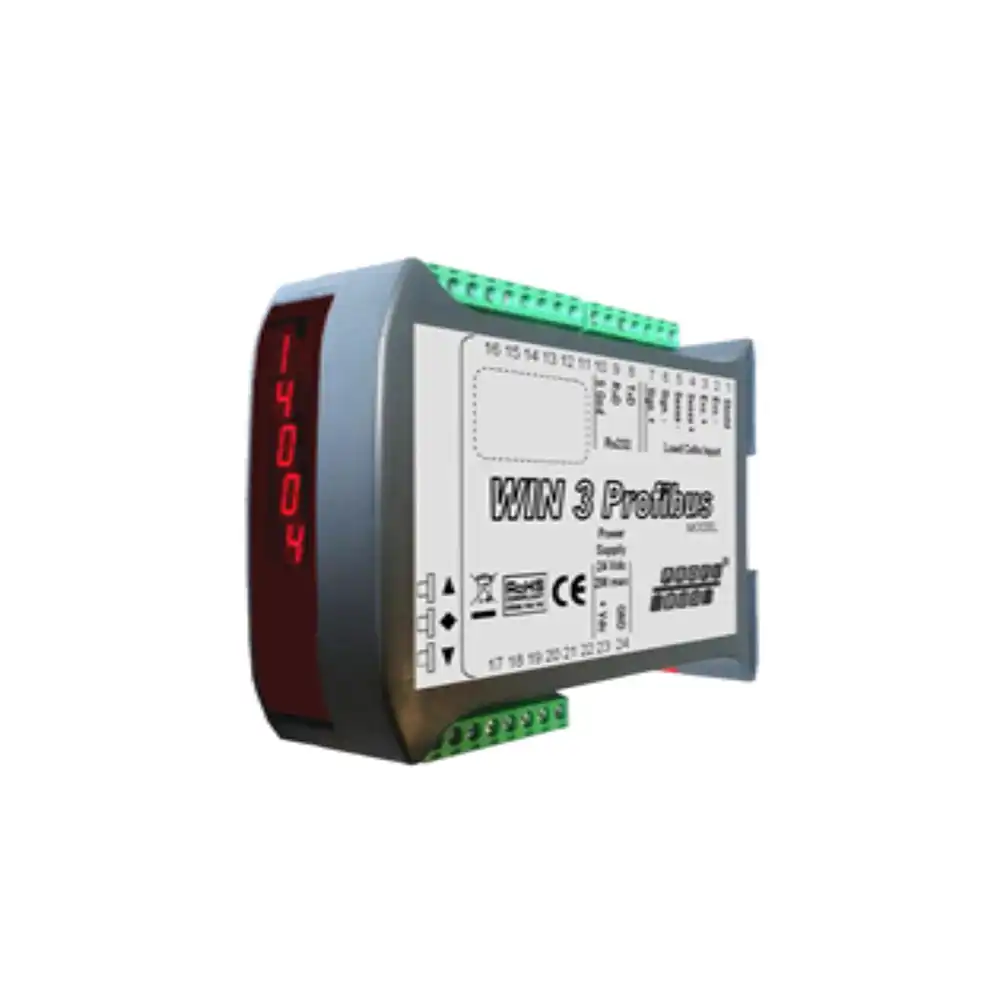

Weight conversion module for industrial areas, with extensive connection possibilities to existing communication systems. Compact and easy to program, DIN-rail or omega-rail installable.
It has a 7mm red LED display. In addition to a n RS232 port, it is possible to choose a suitable expansion from those available in the table.
Technical features:
• Back panel transmitter (on DIN rail or omega rail mount)
• 5 digit led display h 7mm, keypad 3 mechanical keys
Accessories not found
Data Sheets
User Manuals
Please login to download
Models
| Description | Code |
|---|---|
| {„it-IT":"Trasmettitore di peso WIN 3 RS485 „,"en-GB":"WIN3/RS485"} | VW03-485 |
| {„it-IT":"Trasmettitore di peso WIN 3 ANALOGICA „,"en-GB":"WIN3/ANALOG"} | VW03-A |
| {„it-IT":"Trasmettitore di peso WIN 3 ETHERNET „,"en-GB":"WIN3/ETHERNET"} | VW03-E |
| {„it-IT":"Trasmettitore di peso WIN 3 CANOPEN „,"en-GB":"WIN3/CANOPEN"} | VW03-CO |
| {„it-IT":"Trasmettitore di peso WIN 3 PROFIBUS „,"en-GB":"WIN3/PROFIBUS"} | VW03-PB |
| {„it-IT":"Trasmettitore di peso WIN 3 PROFINET „,"en-GB":"WIN3/PROFINET"} | VW03-PN |
| {„it-IT":"Trasmettitore di peso WIN 3 ETHERNET IP „,"en-GB":"WIN3/ETHERNET IP"} | VW03-EI |
| {„it-IT":"Trasmettitore di peso WIN 3 DEVICE NET","en-GB":"WIN3/DEVICE NET"} | VW03-DN |
