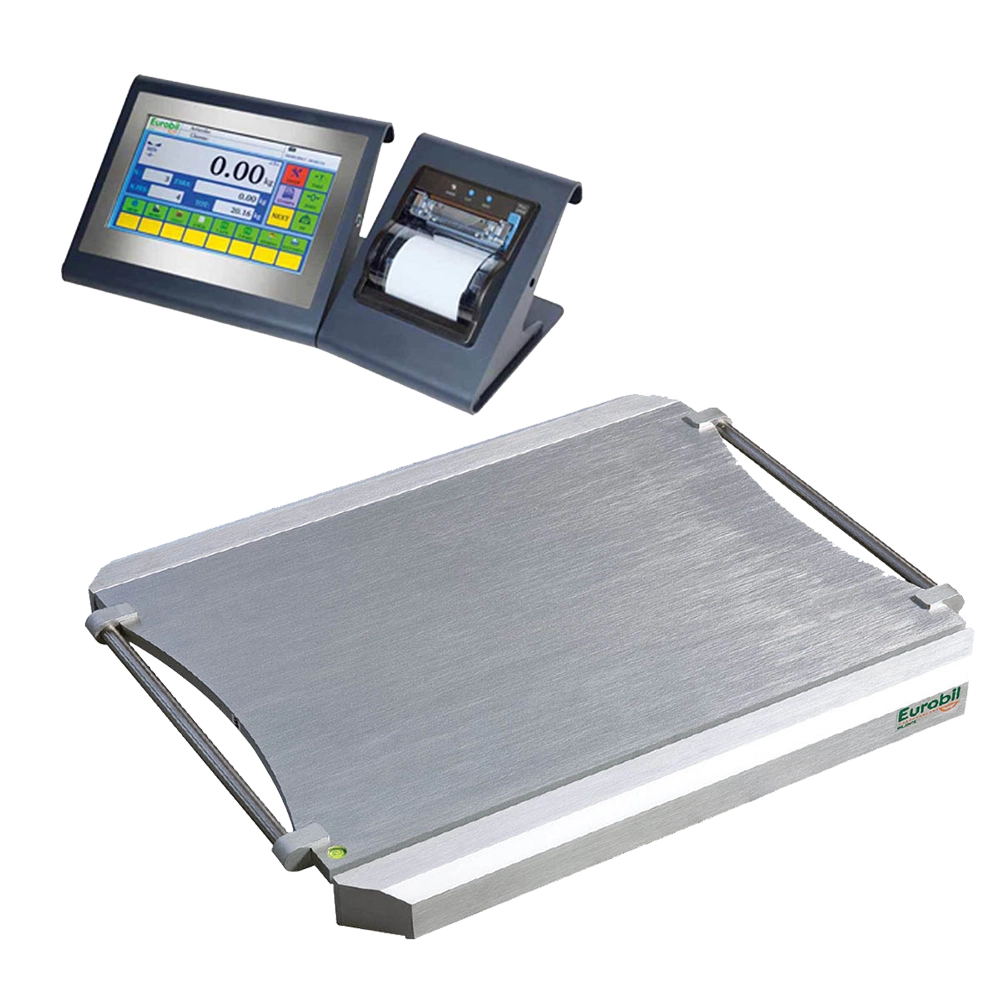

Wheel weighing platforms
Capacity
-
Division
-
Features
• Platforms designed for mobile weighing stations for vehicles with variable dimensions (cars, vans, trucks, etc.).
• Single aluminium platform structure with built-in access ramps and handle for transport.
• Special vulcanised non-slip rubber applied underneath each platform to ensure maximum grip on all surfaces.
• Weight measurement by 4 stainless steel shear beam load cells, approved up to 4000 divisions and with IP69 protection.
• Weight: approx. 23kg (platform 530x645x53mm) and 42kg (platform 965x607x61mm).
• 10m cable with connector to plug the platform to the weight indicator.
• Radio frequency module (optional) including: a transmitter with a battery pack for each platform and a receiver to be placed on the weight display.
| Description | Code |
|---|---|
 Connection module
|
OGE0-RF868 |
Data Sheets
User Manuals
Please login to download
Models
| Description | Dimensions | Capacity | Division | Code |
|---|---|---|---|---|
| {„it-IT":"1.500 pa","en-GB":"1.500 pa"} | 530 × 645 × 53 | 1500 Kg | 0.5 g | PGI01T5 - 530X645 |
| {„it-IT":"3.000 pa","en-GB":"3.000 pa"} | 530 × 645 × 53 | 3000 Kg | 1 g | PGI03T0 - 530X645 |
| {„it-IT":"6.000 pa","en-GB":"6.000 pa"} | 530 × 645 × 53 | 6000 Kg | 2 g | PGI06T0 - 530X645 |
| {„it-IT":"10.000 pa","en-GB":"10.000 pa"} | 530 × 645 × 53 | 10000 Kg | 5 g | PGI010T-530X645 |
| {„it-IT":"10.000 pa","en-GB":"10.000 pa"} | 965 × 607 × 61 | 10000 Kg | 5 g | PGI010T-965X607 |
