FMS02 platformsComplete with displayOr platform only
Capacity
3000 Kg
Division
500/1000 M.R. g
Features

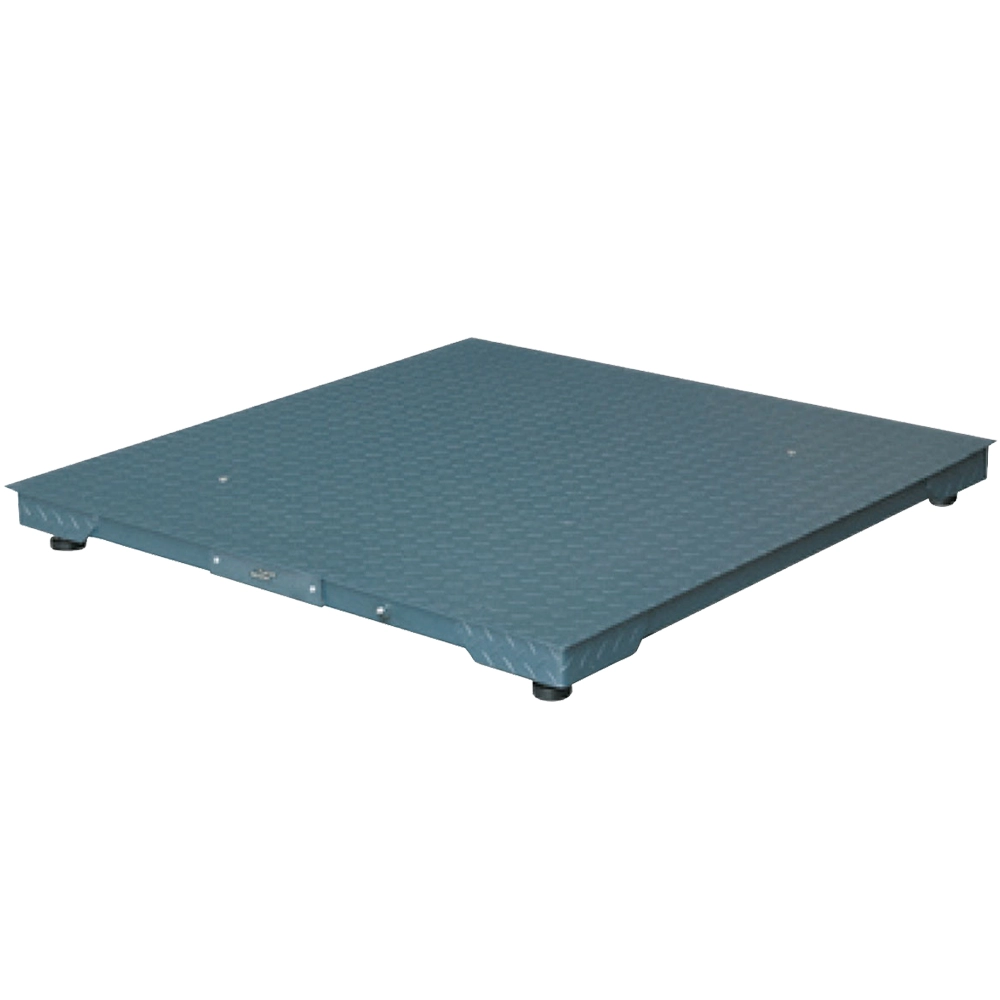

FM02 ITALY Platforms Main Features:
• Painted steel single-structure weighing platform (with smooth plate) for installation flush with the floor or above ground.
• Weight detection through 4 shear load cells, approved up to 3000 divisions and with IP67 protection.
• 5m shielded connection cable to the display.
• Self-centring articulated feet for each load cell and levelling bubble.
• Junction box complete with board, connectors and with IP68 protection.
• Frame for foundation pit with 4 angles for footplate housing (optional).

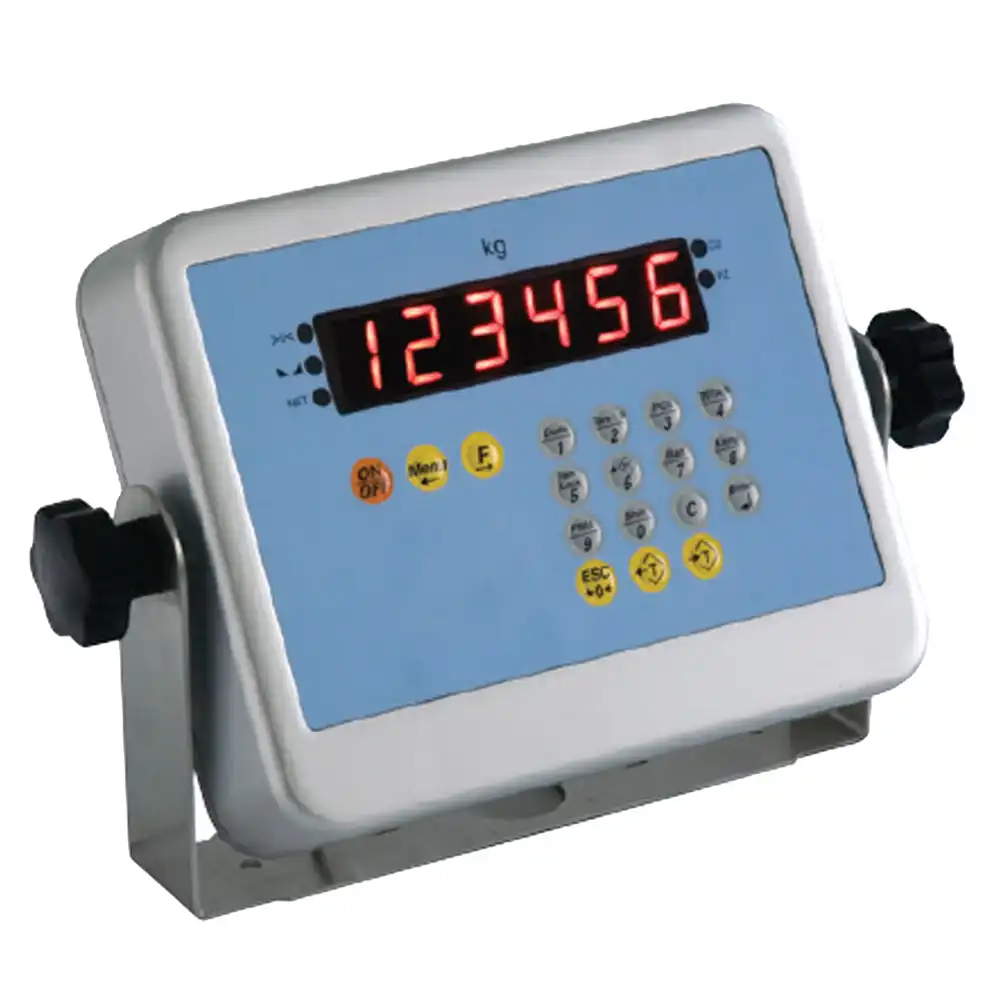

FLY/1 Display Main Features:
• Automatic and manual tare device.
• Container: ABS.
• Tare locking/unlocking device.
• Battery level indicator device.
• Counting functions.
• 9 storable tares.
• 99 codes with assignable PMU and management of totalisations.
• Weighing with final totalisation, printing of totals per code.
• Weighing storage and subsequent download to PC.
• Energy autonomy approx. 10 hours.
• Battery charging time approx. 12 hours.
• Programmable auto switch-off device.
• Connection to personal computers, printers, repeaters.
Data Sheets
User Manuals
Please login to download
Models
| Description | Dimensions | Finish | Code |
|---|---|---|---|
| {„it-IT":"Con visore FLY/1","en-GB":"With FLY/1 Display"} | 100 × 125 cm | Painted | PFMV3T0-100X125 |
| {„it-IT":"Solo piattaforma „,"en-GB":"Platform only"} | 100 × 125 cm | Painted | PFMS3T0-100X125 |
| {„it-IT":"Con visore FLY/1","en-GB":"With FLY/1 Display"} | 125 × 125 cm | Painted | PFMV3T0-125X125 |
| {„it-IT":"Solo piattaforma „,"en-GB":"Platform only"} | 125 × 125 cm | Painted | PFMS3T0 -125X125 |
| {„it-IT":"Con visore FLY/1","en-GB":"With FLY/1 Display"} | 125 × 150 cm | Painted | PFMV3T0-125X150 |
| {„it-IT":"Solo piattaforma „,"en-GB":"Platform only"} | 125 × 150 cm | Painted | PFMS3T0-125X150 |
| {„it-IT":"Con visore FLY/1 „,"en-GB":"With FLY/1 Display"} | 150 × 150 cm | Painted | PFMV3T0-150X150 |
| {„it-IT":"Solo piattaforma","en-GB":"Platform only"} | 150 × 150 cm | Painted | PFMS3T0-150X150 |
