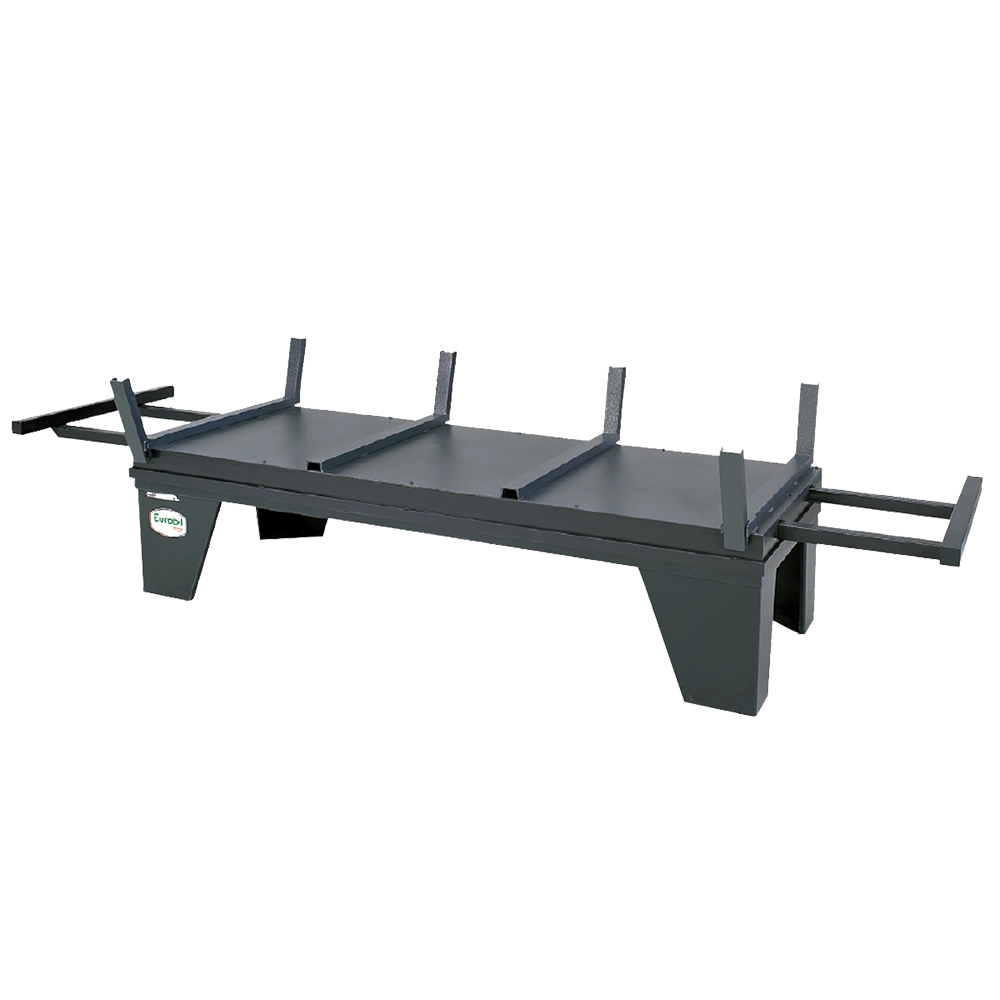

PFE iron-weighing 4-cell platforms
Capacity
-
Division
-
Features
• Single-structure weighing platform in painted steel.
• Weight measurement by 4 stainless steel shear beam load cells, approved up to 4000 divisions and with IP67 protection.
• The cells rest on four ball supports supported by a special shock absorber to allow the platform to swing vertically and laterally.
• Shielded 5m display connection cable.
• Self-centring articulated feet for each load cell and spirit level.
• Junction box with card, connectors and IP68 protection.
Equipped with 4 legs that bring the loading platform to a height of approx. 70 cm.
Extendable extension arms (for iron bars) with a length of approx. 70 cm are available on request.
| Description | Code |
|---|---|
 Extendable extension arms
|
OFE0B3T |
Data Sheets
User Manuals
Please login to download
Models
| Description | Dimensions | Capacity | Division | 1° Range | Finish | Code |
|---|---|---|---|---|---|---|
| PFE iron-weighing 4-cell platforms | 100 × 200 cm | 3000 Kg | 1 g | 1500 Kg - 0.5 g | Painted | PFE03T0-100X200 |
| PFE iron-weighing 4-cell platforms | 100 × 200 cm | 6000 Kg | 2 g | 3000 Kg - 1 g | Painted | PFE06T0-100X200 |
| PFE iron-weighing 4-cell platforms | 125 × 200 cm | 3000 Kg | 1 g | 1500 Kg - 0.5 g | Painted | PFE03T0-125X200 |
| PFE iron-weighing 4-cell platforms | 125 × 200 cm | 6000 Kg | 2 g | 3000 Kg - 1 g | Painted | PFE06T0-125X200 |
| PFE iron-weighing 4-cell platforms | 100 × 300 cm | 3000 Kg | 1 g | 1500 Kg - 0.5 g | Painted | PFE03T0-100X300 |
| PFE iron-weighing 4-cell platforms | 100 × 300 cm | 6000 Kg | 2 g | 3000 Kg - 1 g | Painted | PFE06T0-100X300 |
| PFE iron-weighing 4-cell platforms | 125 × 300 cm | 3000 Kg | 1 g | 1500 Kg - 0.5 g | Painted | PFE03T0-125X300 |
| PFE iron-weighing 4-cell platforms | 125 × 300 cm | 6000 Kg | 2 g | 3000 Kg - 1 g | Painted | PFE06T0-125X300 |
| PFE iron-weighing 4-cell platforms | 150 × 300 cm | 3000 Kg | 1 g | 1500 Kg - 0.5 g | Painted | PFE03T0-150X300 |
| PFE iron-weighing 4-cell platforms | 150 × 300 cm | 6000 Kg | 2 g | 3000 Kg - 1 g | Painted | PFE06T0-150X300 |
